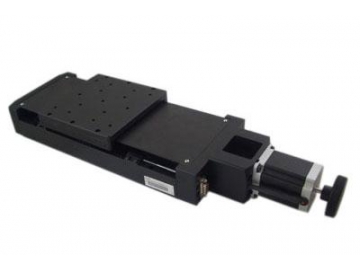

WN210TA(50-600)H precision motorized linear stage is suitable for providing electrically controlled linear displacement in automatic displacement control in scientific research, full-automatic measuring and testing equipment, industrial automation and other fields. It has a table size of 179×179mm with 3 kinds of load capacity (20kg, 30kg and 50kg), and a wide travel range from 50mm to 600mm.

Parameter table of precision motorized linear stage
Model WN210TA50H WN210TA100H WN210TA150H WN210TA200H WN210TA300H WN210TA400H WN210TA500H WN210TA600H
Travel 50 mm 100 mm 150 mm 200 mm 300 mm 400 mm 500 mm 600 mm

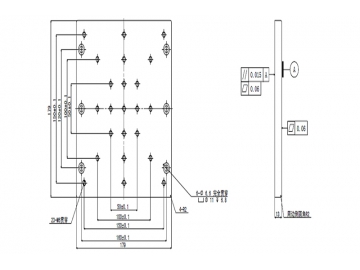

Table Size 179×179mm 179×179mm 179×179mm 179×179mm 179×179mm 179×179mm 179×179mm 179×179mm
Screw Type High precision ball screw (lead 4mm) Ball screw (lead 5mm/10mm)
Stepper Motor (1.8°) STP-57D3016
Load Capacity 20kg 30kg 50 kg
Weight 2.8kg 3.4kg 4.5kg 5.2kg 6.3kg 7.2kg 8.3kg 10.3kg
Resolution 20μ (Non-microsteppling driver) 1μ (20 microstepping driver) 25μ/50μ (Non-microstepping driver) 1.25μ/2.5μ (20 microstepping driver)
Maximum Speed 40mm/sec 50mm/sec or 100mm/sec
Repeatability
Positional Accuracy
Straightness
Driving Parallelism 10µ 15µ 20µ
Pitching 25″ 50″ 60″
Yawing 20″ 25″ 30″
Backlash
Run out
Features of WN210TA(50-600)H Motorized Linear Stage
  • Light weight with aluminum alloy material, and the surface was blackened by anodic oxidation.
  • High load capacity and high rigidity with linear slide guide. The motorized linear stage is suit for industrial processing, laboratory or other places requiring high load and long-term continuous operation.
  • High precision ball screw drive, great repeatability and positional accuracy, small axial clearance and long service life.
  • Equipped with dustproof cover.
  • Greatly improved the positional accuracy by adding servo motor and closed-loop control of linear scale.
  • The power-off brake can be added to ensure the safety braking when power is off.
  • The travel of linear stage can be customized according to customer requirements.
