Polyester filter cartridge is a pleated type filter cartridge produced from cellulose polyester, which offers better abrasion resistance and higher flow rate than other common filter cartridge medias. With its high wet strength, this pleated polyester cartridge is washable and reusable, providing a long service life. The center core and end caps are galvanized for better rust resistance. Neoprene gasket is used to form a proper seal. This filter cartridge allows operating temperature up to 135°C.

Applications
  • Powder coating
  • Sandblasting
  • Spray painting
  • Woodworking
  • Cement and more
Specifications
Model: JH/P 3266

Outer diameter of top end cap(mm): Ø324
Inner diameter of top end cap(mm): Ø213
Outer diameter of bottom end cap(mm): Ø324
Inlet diameter(mm): Ø16
Height(mm): 660
Filtration area: 9.4
Model: JH/P 3275

Outer diameter of top end cap(mm): Ø324
Inner diameter of top end cap(mm): Ø213
Outer diameter of bottom end cap(mm): Ø324
Inlet diameter(mm): Ø16
Height(mm): 750
Filtration area: 10.6
Model: JH/P 32100

Outer diameter of top end cap(mm): Ø324
Inner diameter of top end cap(mm): Ø213
Outer diameter of bottom end cap(mm): Ø324
Inlet diameter(mm): Ø16
Height(mm): 1000
Filtration area: 14.2

* Custom dimensions are also available as per your request.

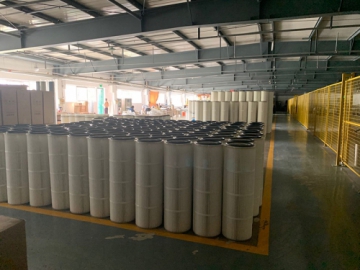

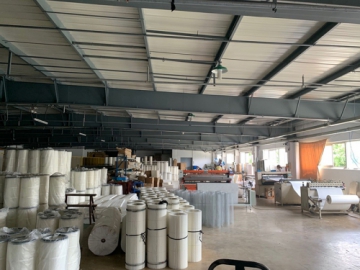

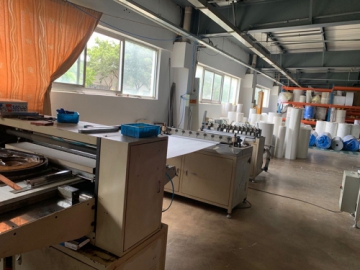

Filter Cartridge Production Workshop
