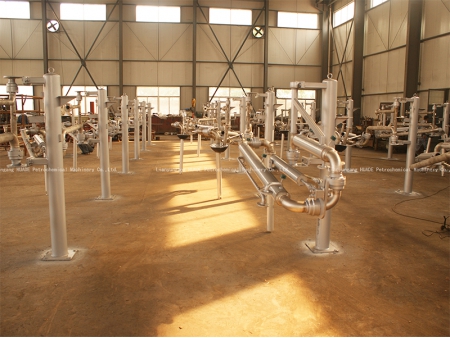

Single Arm Top Loading Arm
Request a Quote
The single arm top loading arm is suitable for open top loading and unloading of road tankers and railcars by transferring bulk liquids through open manholes at the top of the tanker.
Specifications
Nominal diameter: DN50～DN200
Design pressure: -0.06MPa～2.5MPa
Design temperature: -40℃～ 230℃
Pipeline material: carbon steel/stainless steel/PTFE lined
Drop pipe material: aluminum alloy or other materials
Features
- Pipe sections are connected by 4 swivel joints, providing the flexibility required for transporting fluids to any tankers located within the working envelope;
- When the height of the tanker is relatively high, then it is recommended to use a telescopic drop pipe that enables the tank to be filled from the bottom upwards;
- Installing a drop pipe deflector or cutting fill pipe off at 45 degrees can help minimize splashes and surges which may cause damage to the tank body;
- Equipped with outboard arm locking mechanism to lock the loading arm at working position;
- Equipped with inboard arm locking mechanism to lock the loading arm at parking position;
- Spring cylinder balancing system keeps the outboard arm and parts of front end counterbalanced, providing the loading arm with smooth up/down movement;
- Vacuum breaker is utilized to ensure that the piping system is quickly drained;
- Configured with anti-static device, efficiently eliminating the static charges and stray currents caused by liquid flowing through pipes during the loading and unloading operations;
Optional Accessories
- Static grounding alarm
Grounding is an effective means of preventing the buildup of static charges by connecting the tanker to the earth. If connections are not made properly, the visible and audio alarm will be triggered. - Tank level alarm
When the liquid level exceeds the limited value, the alarm generates the sound or sends the signal to alert operators. - Submersible pump
The pump is used to discharge the liquids out of the tanker. - More configuration options
can be provided as per customer request.
