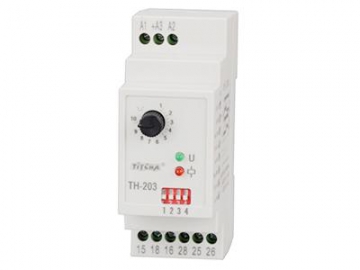

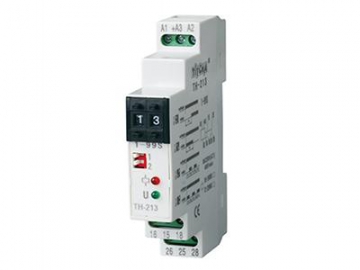

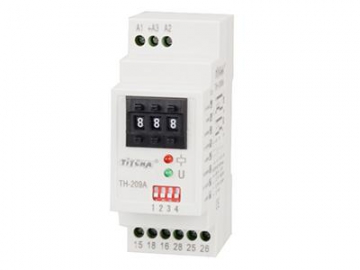

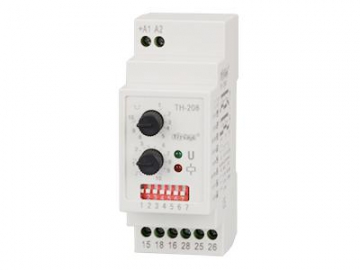

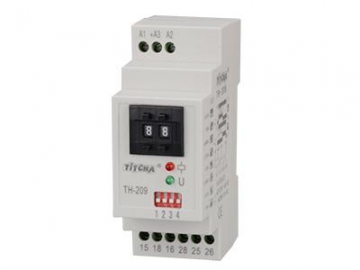

Comparable to European relay designs, our TH series time delay relays (TH-208, TH-203 and TH-209 (A)) feature large-scale integrated circuits. If you are looking for small volume relays with a wide timing range, high precision, reliability, large contact capacity and low power consumption, then our TH series relays are a perfect choice. They are widely used in all types of automatic control systems.

Parameters
Model TH-208 TH-203 TH-209 TH-209A TH-206 TH-213 TH-216
Available time ±0.05%
Repeat accuracy < 0.5%+20ms
Contact rating AC 250V DC 30V 8A
Rated voltage AC 12-380V±10%, DC 12-48V 50/60Hz
Operation type on-delay with circulation; release-delay with circulation on-delay; release-delay
Output contact SPDT (2)
Time range 0.1s-10h 0.1s-10h 0.1s-99h 0.1s-999h 0.1s-99h 0.1s-9.9m 0.1s-10h

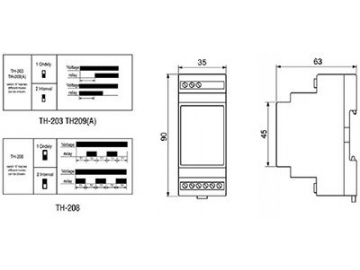

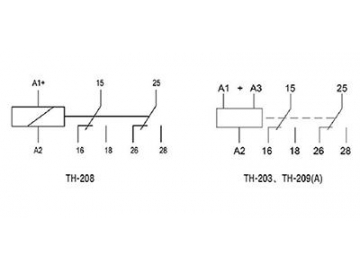

Process chart & Wiring diagram
