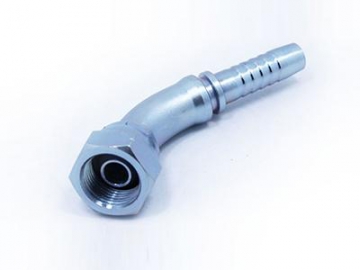

20141 Metric 45° Elbow Female Multi Seal Fittings
Request a Quote
Application: for use with hydraulic braided hoses
Materials:- Stainless steel metric 45° elbow female multi seal fittings
- Carbon steel metric 45° elbow female multi seal fittings

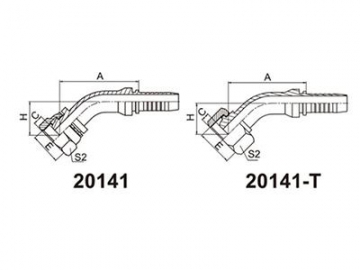

| Part No. | Thread | Hose Bore | Dimensions | |||||
| E | DN | DASH | A | C | H | S2 | ||
| 20141-12-04 | M12×1.5 | 6 | 04 | 43 | 4 | 22 | 17 | |
| 20141-16-06 | M16×1.5 | 10 | 06 | 47.4 | 4.5 | 24.1 | 22 | |
| 20141-18-06 | M18×1.5 | 10 | 06 | 48.5 | 4 | 24.2 | 24 | |
| 20141-20-06T | M20×1.5 | 10 | 06 | 48.2 | 5.5 | 23.9 | 27 | |
| 20141-22-08 | M22×1.5 | 12 | 08 | 62.1 | 5 | 27.2 | 27 | |
| 20141-24-08T | M24×1.5 | 12 | 08 | 61.1 | 5.5 | 26.1 | 30 | |
| 20141-30-12 | M30×2 | 20 | 12 | 80.9 | 6 | 33.5 | 36 | |
| 20141-36-14T | M36×2 | 22 | 14 | 83 | 7 | 32.64 | 41 | |
| 20141-39-16T | M39×2 | 25 | 16 | 88.2 | 7 | 33.95 | 46 | |
| 20141-45-20T | M45×2 | 32 | 20 | 99.1 | 8.5 | 38.4 | 55 | |
| 20141-52-24T | M52×2 | 40 | 24 | 114.1 | 9 | 43.4 | 60 | |
