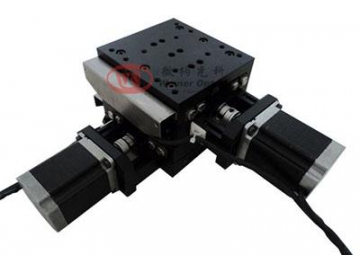

WN09GA15 Motorized Goniometer Stages

WN09GA15 Motorized Goniometer Stages
WN09GA15 Motorized Goniometer Stages
WN09GA15 Motorized Goniometer Stages
Request a Quote

Equipped with standard stepper motor and RS232 connection, the automatic control can be realized. With precision worm and worm gear structure the operation is more stable. The goniometer stage could rotate forward or backward with minimal backlash. Because of delicate backlash eliminating structure, the backlash caused by long-term operation could be adjusted.

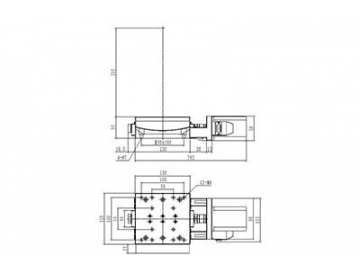

The table size is 120×130mm with an angle range of ±15°; the speed is 5°/sec; the center load capacity is 30kg.

Model WN08GA10
Structure Angle range ±10°
Table size 120×130mm
Worm gear ratio 464∶1
Height of rotation center 210mm±0.2 mm
Driving gear Worm gearing
Guide rail Crossed-roller bearing
Stepper motor (1.8°) SST57D2121
Material Aluminum alloy
Surface Blackened by anodic oxidation
Center load capacity 30kg
Weight 5kg
Resolution ≈0.004°≈15″(Non-MS driver)
≈2″(20 MS driver)
Accuracy Rotation center deflection accuracy 0.03 mm
Speed 4°/sec
Repeatability ±3″
Step-out 2″
Features
  • With stepper motor and RS232 connection.
  • The motor axis has gone through several precision processes, is featured with high precision, high load and long service life.
  • Stable operation with precision worm and worm gear structure; the goniometer stage could rotate forward or backward with minimal backlash.
  • The special design lessens wobble and tilt of the motorized stage's platform to a great extent, making the rotation more stable.
  • The scale along the outer edge of the motorized stage's platform is a laser marking ruler, and the ruler could rotate relative to the stage, making it easy to return to the initial position and read values.
  • The stepper motor and worm are connected by high quality flexible coupling, good for eliminating eccentricity and greatly reducing eccentricity disturbance, as well as lowering noise.
  • WN09GA15 motorized goniometer stage could be used horizontally or vertically, and could be combined with other motorized stages to form integrated multi-axis stages.
  • WN09GA15 motorized goniometer stage can be used in conjunction with each other or separately. After conjunction, it can make two-dimensional orthogonal rotation around a common pivot point.
  • The precision goniometer stage could be customized, such as adding limit function, setting the initial zero, changing the servo motor, and adding the rotary encoder.
