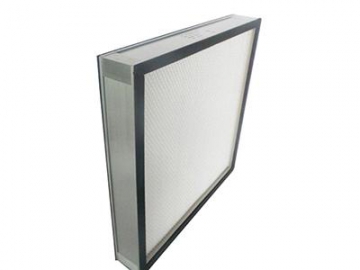

H14 HEPA air filters without separators are made of water resistant and non-flammable glass fiber or high-performance polypropylene, and a melt blown protective cover can be installed on the exhaust end of the filter. HEPA air filters without separators have a simple structural design, and improve an even air circulation. They are primarily installed in cleanrooms, pharmaceuticals factories, food processing factories, hospitals and venues with strict requirements for clean air.

Parameter
Size (L*W*H mm) Rated air flow quantity (m3/h) Recommended air flow quantity Initial resistance (Pa) End resistance (Pa) Filtering efficiency (%)
305×305×69 260 260 ≤160Pa ≤350Pa 99.999
484×484×69 700 700 ≤160Pa ≤350Pa 99.999
610×610×69 1100 1100 ≤160Pa ≤350Pa 99.999
915×610×69 1600 1600 ≤160Pa ≤350Pa 99.999
610×610×90 1500 1500 ≤160Pa ≤350Pa 99.999
915×610×90 2000 2000 ≤160Pa ≤350Pa 99.999
1220×610×90 2800 2800 ≤160Pa ≤350Pa 99.999
Features
  • Diffuser is installed and the end section to regulate air velocity and prevent turbulence
  • Protective cover is installed at the front and end of the air filter to prevent damage
