SPA Massage Two-Speed Pump, DXD-330AS
Request a Quote

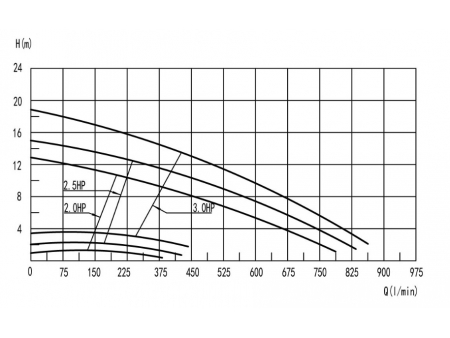

Performance Curve
Working conditions
- Medium temperature: 5-50℃
- Environmental temperature: ≤50℃
- Humidity: 65% RH
- Maximum working pressure: 0.4MPa
With proven product quality and performance, we are confident to offer:
- Pool equipment wholesale for distributors
- Everything needed from pool and Spa equipment to pool accessories for pool & Spa contractor
- OEM service for branded suppliers and manufacturers of pool equipment and supplies
- Manufacturing service of pool equipment and supplies for the factories with limited production capacity and product variations.
Technical data
| Model | Voltage | Power | Rotating speed(r/min) | Maximum Lift(m) | Maximum flow(l/min) | Insulation class | Protection grade | Gross weight(kg) | Certification | |
| KW | HP | |||||||||
| DXD-325AS | 230V/50Hz | 1.90 | 2.5 | 2850 | 14.0 | 833 | F | IP X5 | 20.0 | |
| 0.3 | 0.5 | 1450 | 2.0 | 422 | ||||||
| DXD-330AS | 230V/50Hz | 2.1 | 3.0 | 2850 | 15.5 | 866 | F | IP X5 | 20.0 | |
| 0.40 | 0.6 | 1450 | 3.5 | 433 | ||||||
| DXD-325CS | 230V /60Hz | 1.90 | 2.5 | 3450 | 14.0 | 833 | F | IP X5 | 20.0 | UL |
| 0.35 | 0.5 | 1725 | 2.0 | 422 | ||||||
| DXD-330CS | 230V /60Hz | 2.1 | 3.0 | 3450 | 15.5 | 866 | F | IP X5 | 20.0 | UL |
| 0.4 | 0.6 | 1725 | 3.5 | 433 | ||||||
Packing: 510mm×220mm×265mm Container:20＇: 1100pcs 40＇ 2200pcs
Optional function: timer & no water protection
