SMD2835 LED Strip Lights (7.2W)
Request a Quote
- Watts: 7.2W/M
- Lumens: 22-24lm /led
- LED: 120 x 2835 SMD Commercial
- Voltage: 12V
- Application: Feature Lighting
Features:
- Various color temperatures are optional, including 2700K / 3000K/ 4000K / 6000K
- High brightness 2835 LED (single LED 22-24lm, large-scale chip lamp beads LED (8×15ML)
- Double-sided flexibility PCB (2OZ thickness), high quality resistance to protect the LED chip from damage
- DC12V low voltage for safety and stability with a 2-year warranty
- White PCB coating for a high temperature environment to protect the PCB board and prevent short circuits
- 3-LED units that can be cut to different lengths to meet the various needs of customers
- Original imported 3M adhesive makes it easy to install

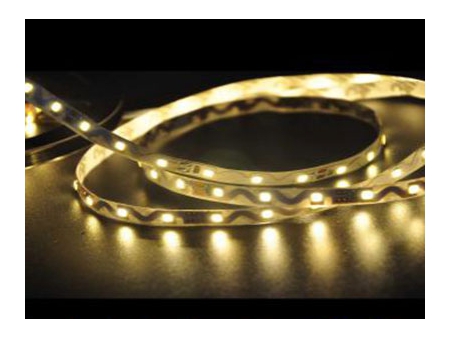

- S-shaped PCB board can be bent to any shape
Installation method:
Remove the protective sheet of the 3M adhesive tape on the back of the LED strip and stick it to the desired location.
Applications:
Suitable for 3-15cm thickness of mini signage lighting
Technical parameters:
| Model | LED chip | Power(W/M) | Max daisy chain（led/M） | Nominal voltage( V ) | Color temperature(K) | Luminous flux(lm /led) | Color rendering index R（CRI） | Dimension | IP rating (modules) |
| （length*width*height mm） | |||||||||
| SL-LR-2835W300-12-S | 2835 | 7.2 | 120 | 12 | PW 6000 / | 22-24 | 70 | 5000*6*2.1mm | IP20 / IP65 |
| NW 4000/ WW 2700-3000 |
Protection level:
Dimension (Unit：mm [in]):
Installation diagram:

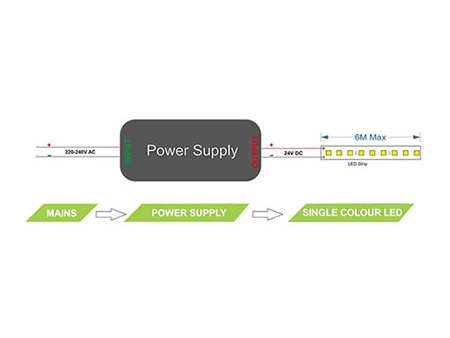

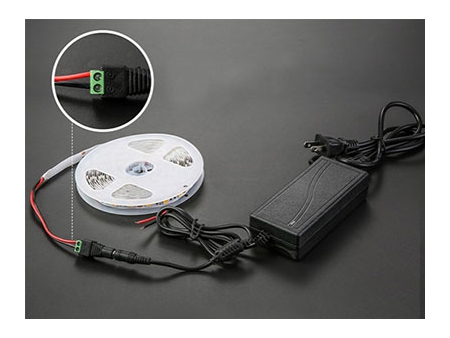

- Power connect single strip
- Power connect multiple strips

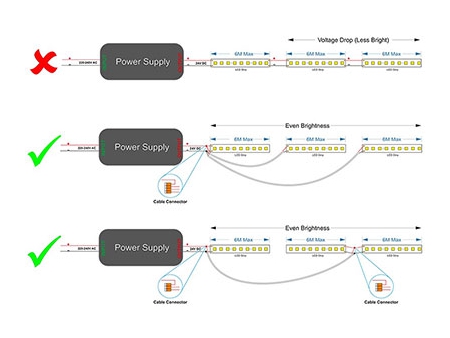

- Recommend and not recommended connection method

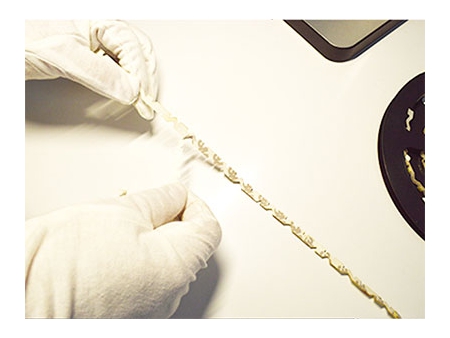

Manufacturing process:

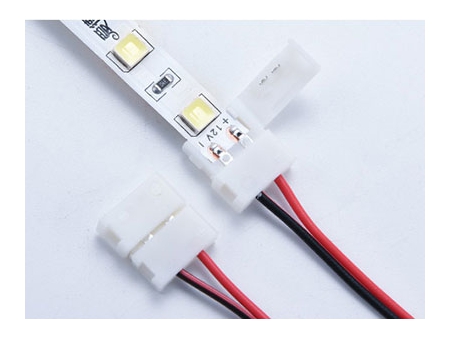

Instructions for cutting, welding, pasting and joining:
Safety precautions:
- The white LED tape light can only be used after removing the packaging. Before use, please confirm that the product is free from damage. If it is damaged, it cannot be installed and used.
- Please select a suitable power supply and check the voltage range before use.
- The optimal working environment temperature of the product is -25°C ~ 60°C, and the storage environment temperature is -40°C ~ 80°C.
- The product should be installed in a place with good ventilation and heat dissipation. Do not install in a sealed space.
- Please cut off the electricity supply during installation, and then power on. Do not touch the product during use.
- Pay attention avoid the discharging of static electricity during installation and use.
- The product can be used indoors or outdoors according to its IP rating.
- Avoid looking directly at the luminous body during use.
- Please adhere to the product parameters and instructions for use.

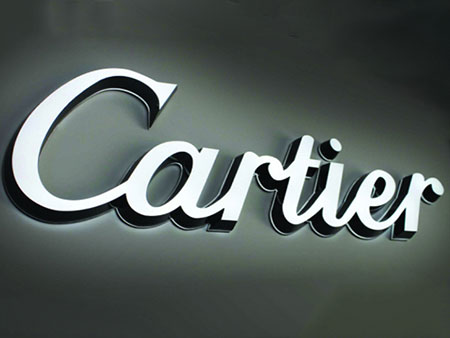

Examples of applications:
