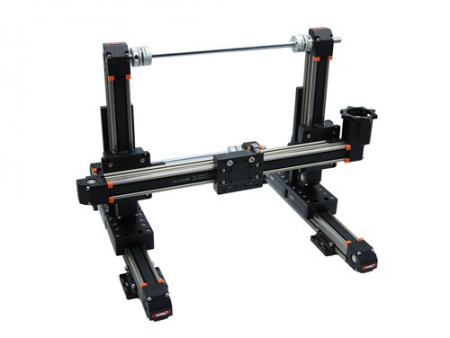

Gantry Robot System, 3 Axis X-Y-ZZ'
Request a Quote
- Dispensing machine
- 3D printer
- Packing machine
- Testing machine
- Optional rail width: 40/45/50/60/80mm
- Length: 300mm-4000mm
- Straightness/Curvature: ≤0.03/300mm
- Load: ≤35KG
- Repeat accuracy: ≤0.1 mm
- Effective travel length: 75/95/105/125/180mm
- Optional synchronous belt specification: HTD 3M, W15mm; STD 5M, W20mm; STD 5M, W30mm
- Single-axis linear module * 5;
- Link shaft assembly * 7;
- Motor mounting bracket * 3;
- Structural frame * 4;
- Electrical proximity switches * 9.
