Request a Quote

Features

  • All steel construction raised basement;
  • Full downdraft airflow style, ensuring turbulence-free airflow path;
  • Illumination brightness reaches 1200 lux;
  • Oil fuel heating (gas-fired heating, electric central heating, hot water heating and steam heating are optional);
  • Sheet metal is processed to European standards;

Specifications

  • Exterior dimensions: 7.134×5.35×3.5m
  • Interior dimensions: 7.0×4.0×2.7m
  • Access door width: 3.0m
  • Access door height: 2.66m
  • Airflow: 25,000m 3 /h
  • Air speed: 0.25-0.30 m/s
  • Power: approx. 17kw
  • Applicable vehicle: sedan car

Standard Configurations

  • Basement: all steel construction raised basement, 5-row grating;
  • Fan unit: one 7.5kw intake fan, one 7.5kw exhaust fan;
  • Heating: Riello RG5D burner, with heat exchanger;
  • Lighting system: upper lights are 14*4*13W LED light tubes, lower lights are 10*4*13W LED light tubes;
  • Wall panel: sheet metal is molded by one-step process, four-side edge banded rockwool insulated wall panel, thickness 50mm
  • Ceiling structure: 14 pieces of precision punched steel panels
  • Roof panel: double-skin insulated roof panel
  • Electric control: imported electrical components, phase loss protection, overheat protection and overload protection, star delta starting of motor (or soft starting);
Full downdraft
Side downdraft (optional)
Crossdraft (optional)
  • Rockwool insulated wall panel (one-step forming of sheet metal, four-side edge banding)

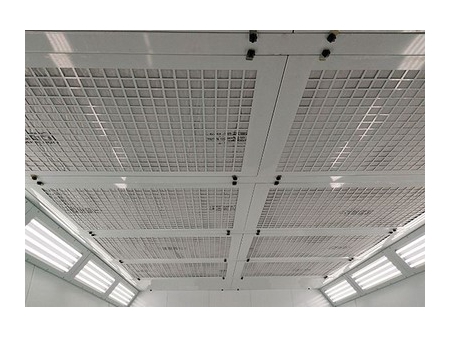

  • Precision punched steel ceiling panels

  • Access door (manufactured by automatic production line utilizing micro-​joining process with weld-free design, resulting in increased panel stiffness)

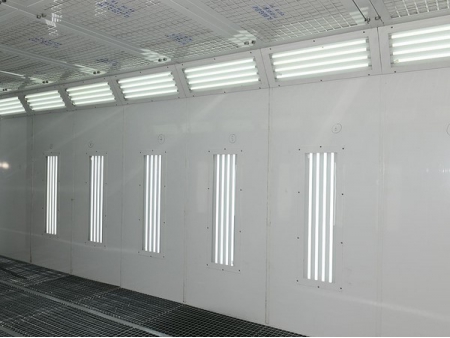

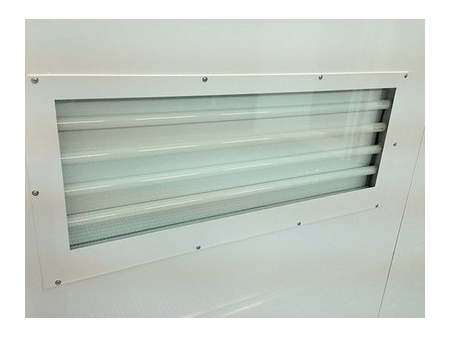

  • Light box (sheet metal is molded by one-step process, each light box can work independently, featuring anti-rust and explosion-proof structure)

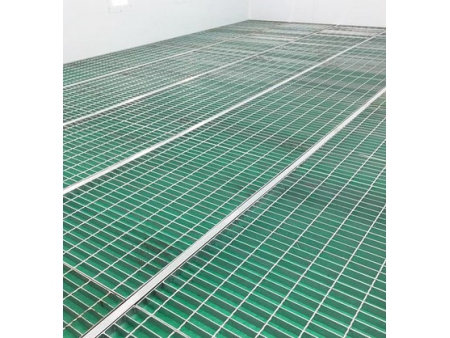

  • All steel construction raised basement (5-row grating)

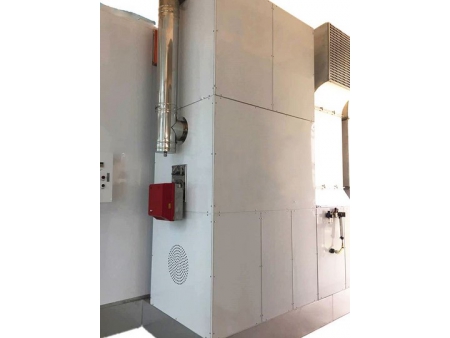

  • Fan unit enclosure (sheet metal is molded by one-step process, high toughness with superior look)
