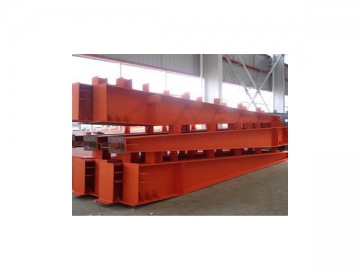

90 Degree Steel Beam Overturn Equipment

90 Degree Steel Beam Overturn Equipment
90 Degree Steel Beam Overturn Equipment
Request a Quote

Application
On the H beam production line, the structural steel is normally standing on the output roller conveyor after assembly. We should use the 90 degree steel beam overturn equipment to carry out H beam overturn before transporting the H beam to the welding zone by roller conveyor, so that the transportation will be convenient.

Parameter
Maximum workpiece weight 20 t
Workpiece dimensions H 1500 x W 800 mm
Overturn angle 90°
Transport speed 2100 mm/min
Single equipment power 0.2Kw
Rail spacing 670mm
Standard configuration 2 sets group
Hydraulic working pressure 16 MPa
Rail 22kg/m, 6mx4

Features
1. The 90 degree steel beam overturn equipment can carry out overturn of the standing H beam onto the roller conveyor, thus avoiding the risk during the manual overturn and reducing the labor intensity.
2. And this machine has moving function that it can carry out standing H beam overturn and movement.

Jinfeng introduction
Jinfeng Welding & Cutting Machinery Manufacture Co., Ltd hires senior engineers from ESAB to lead mechanical department, electrical department and software department. There is 80 people in the team in total. They carry out development and design of various structural steel H beam production lines, so that we have technical guarantee.

Jinfeng has strong production capacity: we have 13 imported CNC machining centers, 3 4mx12m large machining centers, so that the annual output of various structural steel production line is 100.

The sales team is stable. All the members of the sales team have more than 10 years of experience in service, so that they can provide customers with various consultation and services rapidly, in time and expertly. Our executive vice president leads an after-sales service team of 30 employees, so that they can provide 24-hour after-sales service all year round.
