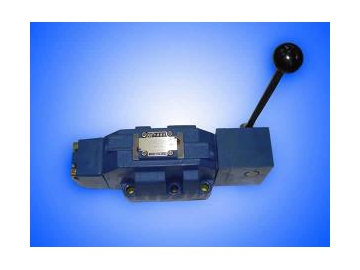

WMM series directional control valve converts fluid direction by using the hand lever to let the spool perform axial movement. It is connected with subplate, and can be used jointly with modular valve of the same diameter. With small volume, large flow capacity, and great performance, hand lever valve is widely applied in industrial equipment, chemical manufacturing, and automobile building industries.

Main Features
1. WMM is directional control valve operated by hand lever
2. Multiple spools available
3. Return spring and locator optional
4. Subplate connected

Technical Parameters
Dimension
6, 10, 16, 25
Max pressure (PMAX) bar 31.5
Max flow L/min up to 450

How to Choose the Right Specification
You can determine the model you want according to the table below. Please feel free to contact us if you have any questions.

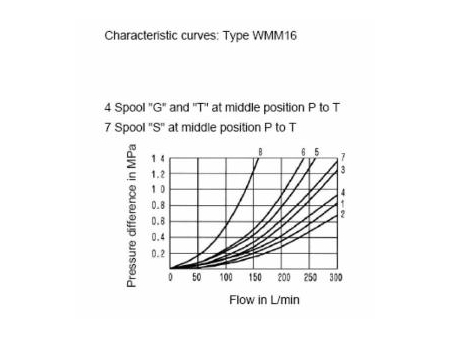

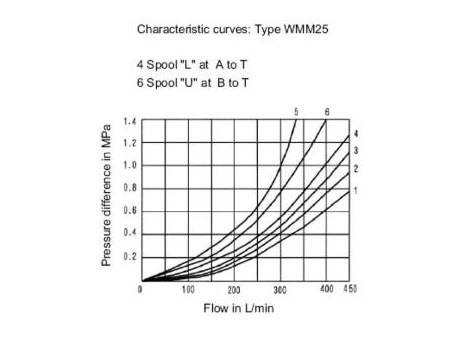

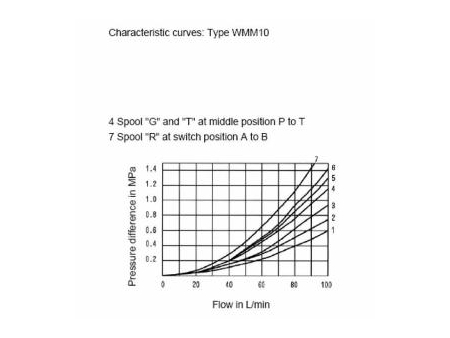

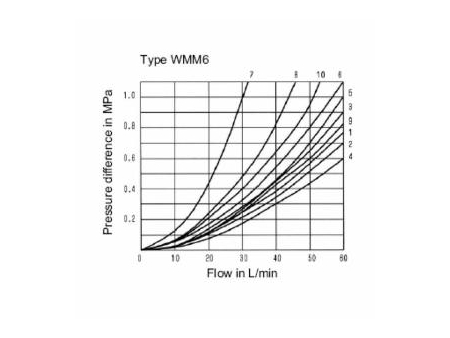

Characteristic Curve (tested at ν=41mm2/s, t=50℃)

After Sales Service
1. Our hydraulic valve product comes with 1 year warranty. If there are any quality issues during the warranty period, we will replace or repair the accessories for free
2. We commit that your email will be replied once we have received it, and we will come up with a solution for your problems as soon as possible
