Alloy Steel Clevis Grab Hook

Alloy Steel Clevis Grab Hook
Alloy Steel Clevis Grab Hook
Request a Quote

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: Blue RAL5015.

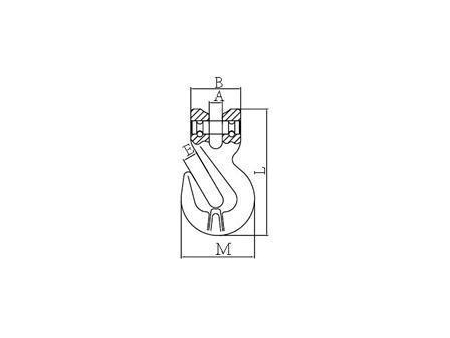

Parameters (Unit: mm)
Item code Weight (kg) Working load limit (t) Breaking load (t) A±0.5 B±1.5 E±1 M±2 L±2
10-SLR1009-06 0.22 1.4 5.6 7.5 32 8 43.5 75
10-SLR1009-08 0.34 2.5 10 9.5 36 10.8 53 91.5
10-SLR1009-10 0.82 4 16 12 46 13.5 72 126
10-SLR1009-13 1.75 6.7 26.8 15 59 16.5 96 163.5
10-SLR1009-16 2.88 10 40 17.5 70 19.2 112.5 183.5
10-SLR1009-20 4.84 16 64 24 85 24 143 224
10-SLR1009-22 8.3 19 76 27 100 27 160.5 262

Ultimate load is 4 times the Working Load Limit.

SPARE PARTS
1 SET = black pin+2 black elastic cylindrical pin

Parameters (Unit: mm)
Item code Size Item code Size
SP-SLR1009-6 6-10 SP-SLR1009-16 16-10
SP-SLR1009-8 8-10 SP-SLR1009-20 20-10
SP-SLR1009-10 10-10 SP-SLR1009-22 22-10
SP-SLR1009-13 13-10
