2835 SMD Warm White Waterproof IP65 LED Strip Light

2835 SMD Warm White Waterproof IP65 LED Strip Light
2835 SMD Warm White Waterproof IP65 LED Strip Light
2835 SMD Warm White Waterproof IP65 LED Strip Light
2835 SMD Warm White Waterproof IP65 LED Strip Light
2835 SMD Warm White Waterproof IP65 LED Strip Light
2835 SMD Warm White Waterproof IP65 LED Strip Light
Request a Quote
Key Features
  • * Ambient Temperature:-20℃ to 45℃
  • * Voltage:DC24V
  • * Length/Reel(M/ft):5m/16.4ft
  • Standard SMD 2835 LED strip light, 2200-3000K color temperature, warm white lighting effects
  • LED Strip light source inserted into a silicone tube with two ended sealing to realize waterproof performance. IP65 rated

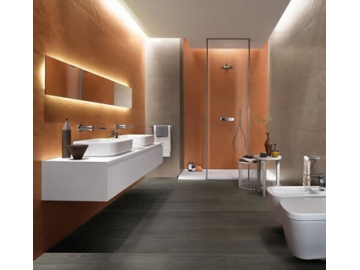

  • Ideal for bathroom, kitchen or other humid environments. Great for outdoor applications with adaptations to different weather conditions
  • Silicone tube featuring excellent cooling performance helps strip lights to work stably even after long-time operation
  • CRI 90 and color tolerance within 5SDCM, allowing for revealing the original colors of illuminated objects
  • Luminous efficacy up to 100lm/W and energy saving
*Please contact our sales for the latest details and certifications
Specification
Model Led Qty Power Lumens per feet Cutting increment LED pitch PCB width
FH05W-P5-G1 28LZ9x 24V60S W08L05 60LEDs/M 4.8W/M
1.46W/ft
300-370lm/M
91-113lm/ft
100mm
3.94inch
16.7mm
0.66inch
10mm
0.39inch
FH08W-P5-G1 28LZ9x 24V96S W08L05 96LEDs/M 7.6W/M
2.32W/ft
520-610lm/M
159-186lm/ft
62.5mm
2.46inch
10.4mm
0.41inch
10mm
0.39inch
FH10W-P5-G1 28LZ9x 24V120S W08L05 120LEDs/M 9.6W/M
2.93W/ft
600-740lm/M
183-226lm/ft
50mm
1.97inch
8.3mm<
0.33inch
10mm
0.39inch
FH14W-P5-G1 28LZ9x 24V180S W10L05 180LEDs/M 14.4W/M
4.39W/ft
950-1170lm/M
290-357lm/ft
33.3mm
1.31inch
5.6mm
0.22inch
12mm
0.47inch
FH09W-P5-G1 28HZ9x 24V30S W08L05 30LEDs/M 8.5W/M
2.59W/ft
510-630lm/M
156-192lm/ft
166.7mm
6.56inch
33.3mm
1.31inch
10mm
0.39inch
FH10W-P5-G1 28HZ9x 24V60S W08L05 60LEDs/M 10W/M
3.05W/ft
730-880lm/M
223-268lm/ft
100mm
3.94inch
16.7mm
0.66inch
10mm
0.39inch
FH14W-P5-G1 28HZ9x 24V60S W10L05 60LEDs/M 14.4W/M
4.39W/ft
930-1130lm/M
284-344lm/ft
100mm
3.94inch
16.7mm
0.66inch
12mm
0.47inch
FH19W-P5-G1 28HZ9x 24V120S W10L05 120LEDs/M 19.2W/M
5.85W/ft
1440-1740lm/M
439-530lm/ft
50mm
1.97inch
8.3mm
0.33inch
12mm
0.47inch
Note:'x' (CCT) ="24"(2400K) / "27"(2700K) / "30"(3000K) / "40"(4000K) / "50"(5000K) / "60"(6000K),Please contact us for more information.

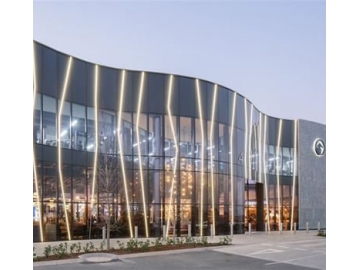

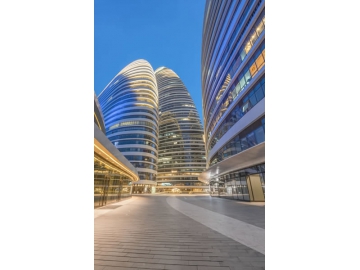

  • Applications
Accessories
  • LED Aluminum Channel
  • Non-waterproof LED Power Supply, Compact Series
  • SE Series LED Strip Connectors
Projects
  • Shenzhen Shekou Sea World
  • Bangkok Center Viaduct, Thailand
  • Wong Tai Sin, Kowloon, Hongkong
