Wall Mount Stainless Steel Enclosure, Electrical Enclosure with Turn Latch, Hinged, IP66
Request a Quote
Stainless Steel Metal Enclosures
MJ-Box could provide range of stainless Standard Enclosures are renowned for its build quality, aesthetics and functionality. They are designed to protect equipment in extreme conditions - including corrosive marine. They are also designed to easily bolt in accessories such as Escutcheon/Inner doors, 19" racks etc.
Specifications and Features
- Made from 1.5mm 304stainless steel

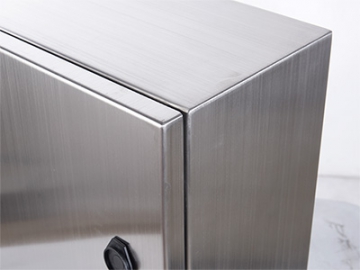

- Fully welded construction - IP66 rating

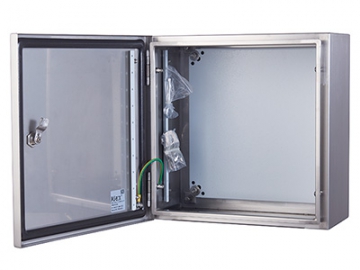

- Reversible door (left hinged is the default position)

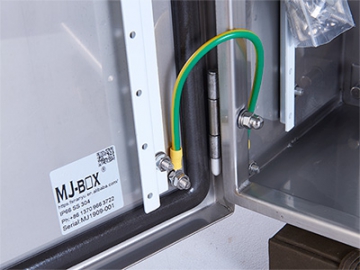

- Door earthed to cabinet via earth studs
- Polyurethane door seal
- 2mm white powder coated* galvanised steel gear tray included
- 2 x Z-brackets included to help with cable management across door hinges
- Folded lip/gutter to ensure effective door seal

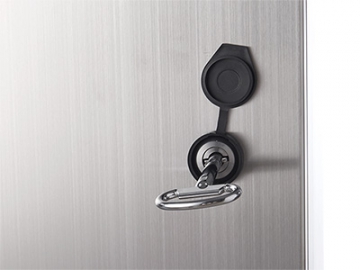

- Door fitted with concealed hinges on one side and 2-bit stainless steel
- lock on the other (600mm high and above have 2 x locks)
- Rear mounting holes fitted with blind nutserts to ensure IP rating*
- 4 x wall mounting brackets included
* Some gear trays are not powder coated and some enclosures do not have nutserts. Please check with us if this is an important requirement for you.

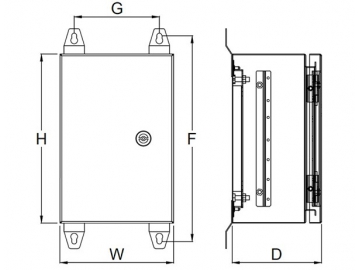

Parameter
| SKU / Item Number | H | W | D | |||
| | 300 | 11.8 | 200 | 7.9 | 150 | 5.9 |
| | 300 | 11.8 | 300 | 11.8 | 150 | 5.9 |
| | 300 | 11.8 | 300 | 11.8 | 200 | 7.9 |
| | 400 | 15.7 | 300 | 11.8 | 200 | 7.9 |
| | 400 | 15.7 | 400 | 15.7 | 200 | 7.9 |
| | 500 | 19.7 | 400 | 15.7 | 200 | 7.9 |
| | 500 | 19.7 | 500 | 19.7 | 300 | 11.8 |
| | 600 | 23.6 | 400 | 15.7 | 200 | 7.9 |
| | 600 | 23.6 | 400 | 15.7 | 300 | 11.8 |
| | 600 | 23.6 | 500 | 19.7 | 250 | 9.8 |
| | 600 | 23.6 | 600 | 23.6 | 300 | 11.8 |
| | 800 | 31.5 | 600 | 23.6 | 200 | 7.9 |
| | 800 | 31.5 | 600 | 23.6 | 300 | 11.8 |
