EMA16 2 Flute Ball End Mill with Taper Neck

EMA16 2 Flute Ball End Mill with Taper Neck
EMA16 2 Flute Ball End Mill with Taper Neck
EMA16 2 Flute Ball End Mill with Taper Neck
Request a Quote
  • Designed for deep cavity profiling, deep slotting and deep pocketing
  • Offers excellent performance when cutting prehardened steels up to HRc56
  • Used for machining molds & dies
  • Taper neck angle available from 0.5°~15°
  • 2 flute tapered carbide carving bits suit for CNC, engraving carving 2D/3D machine

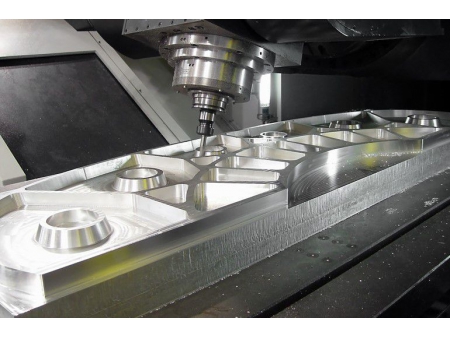

Application
Product Specifications
Coating AITiN /TiALN /TiAISiN
AITiSiN
HRC HRC40/46/56/65
Helix Angle 35/36/37 Shank Cylindrical H6
Material IMC™ Carbide Rod Tolerance on Cutting Diameter 0-0.030
Carbide, 2 Flute Ball Tapered Rib Cutters, for RIB Processing (UNT-EMA16)
UNT EDP # Click to Order Blade Tip Dia.
D1
Taper
Angle(°)
Shank Dia.
D2
Flute Length
L1
Rough side trails
D3
O.A.L.
L2
Flutes
EMA162505 R0.5 0.5 4 4 1.07 50 2F
EMA1605010 R0.5 1 4 4 1.14 50 2F
EMA1605015 R0.5 1.5 4 4 1.21 50 2F
EMA1605020 R0.5 2 4 4 1.28 50 2F
EMA1605030 R0.5 3 4 4 1.42 50 2F
EMA1605050 R0.5 5 4 4 1.7 50 2F
EMA1607505 R0.75 0.5 4 5 1.59 50 2F
EMA1607510 R0.75 1 4 5 1.67 50 2F
EMA1607515 R0.75 1.5 4 5 1.76 50 2F
EMA1607520 R0.75 2 4 5 1.85 50 2F
EMA1607530 R0.75 3 4 5 2.02 50 2F
EMA1607550 R0.75 5 4 5 2.1 50 2F
EMA1610005 R1.0 0.5 4 6 2.37 50 2F
EMA1610010 R1.0 1 4 6 2.21 50 2F
EMA1610015 R1.0 1.5 4 6 2.31 50 2F
EMA1610020 R1.0 2 4 6 2.41 50 2F
EMA1610030 R1.0 3 4 6 2.62 50 2F
EMA1610050 R1.0 5 6 6 3.05 50 2F
EMA1612505 R1.25 0.5 4 8 2.64 50 2F
EMA1612510 R1.25 1 4 8 2.78 50 2F
EMA1612515 R1.25 1.5 4 8 2.91 50 2F
EMA1612520 R1.25 2 4 8 3.05 50 2F
EMA1612530 R1.25 3 4 8 3.33 50 2F
EMA1612550 R1.25 5 6 8 3.9 50 2F
EMA1615005 R1.5 0.5 4 10 3.17 50 2F/4F
EMA1615010 R1.5 1 4 10 3.35 50 2F/4F
EMA1615015 R1.5 1.5 4 10 3.52 50 2F/4F
EMA1615020 R1.5 2 4 10 3.69 50 2F/4F
EMA1615030 R1.5 3 6 10 4.05 50 2F/4F
EMA1615050 R1.5 5 6 10 4.75 50 2F/4F
EMA1620005 R2.0 0.5 6 15 4.26 50 2F/4F
EMA1620010 R2.0 1 6 15 4.52 50 2F/4F
EMA1620015 R2.0 1.5 6 15 4.79 50 2F/4F
EMA1620020 R2.0 2 6 15 5.04 50 2F/4F
UNT EDP # Click to Order Blade Tip Dia. Taper Shank Dia.
Flute Length
Rough side trails O.A.L.
Flutes
D1 Angle(°) D2 L1 D3
EMA1620030 R2.0 3 6 15 5.57 50 2F/4F
EMA1620050 R2.0 5 8 15 6.62 60 2F/4F
EMA1625005 R2.5 0.5 6 20 5.34 50 2F/4F
EMA1625010 R2.5 1 6 20 5.7 50 2F/4F
EMA1625015 R2.5 1.5 6 20 6.04 60 2F/4F
EMA1625020 R2.5 2 8 20 6.39 60 2F/4F
EMA1625030 R2.5 3 8 20 7.1 60 2F/4F
EMA1625050 R2.5 5 10 20 8.5 75 2F/4F
EMA1625070 R2.5 7 10 20 9.91 75 2F/4F
EMA1630005 R3.0 0.5 8 20 6.35 60 2F/4F
EMA1630010 R3.0 1 8 20 6.7 60 2F/4F
EMA1630015 R3.0 1.5 8 20 7.05 60 2F/4F
EMA1630020 R3.0 2 8 20 7.4 60 2F/4F
EMA1630030 R3.0 3 8 20 8.1 75 2F/4F
EMA1630050 R3.0 5 10 20 9.5 75 2F/4F
EMA1640005 R4.0 0.5 10 25 8.44 75 2F/4F
EMA1640010 R4.0 1 10 25 8.87 75 2F/4F
EMA1640015 R4.0 1.5 10 25 9.31 75 2F/4F
EMA1640020 R4.0 2 10 25 9.74 75 2F/4F
EMA1640030 R4.0 3 12 25 10.62 75 2F/4F
EMA1640050 R4.0 5 12 25 12.37 75 2F/4F
EMA1640070 R4.0 7 12 25 14.14 75 2F/4F
EMA1650005 R5.0 0.5 12 35 10.61 100 2F/4F
EMA1650010 R5.0 1 12 35 11.22 100 2F/4F
EMA1650015 R5.0 1.5 12 35 11.83 100 2F/4F
EMA1650020 R5.0 2 12 35 12.44 100 2F/4F
EMA1650030 R5.0 3 12 35 13.67 100 2F/4F
EMA1650050 R5.0 5 16 35 16.12 100 2F/4F

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
