Automatic Label Inspecting Machine, ZB-320

Automatic Label Inspecting Machine, ZB-320
Automatic Label Inspecting Machine, ZB-320
Automatic Label Inspecting Machine, ZB-320
Automatic Label Inspecting Machine, ZB-320
Automatic Label Inspecting Machine, ZB-320
Request a Quote

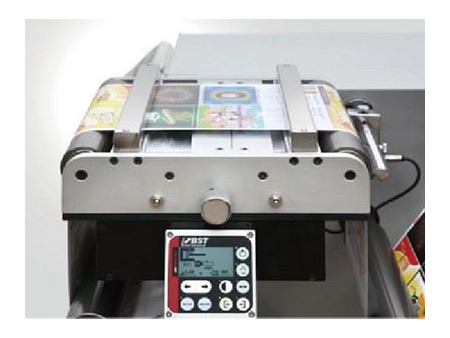

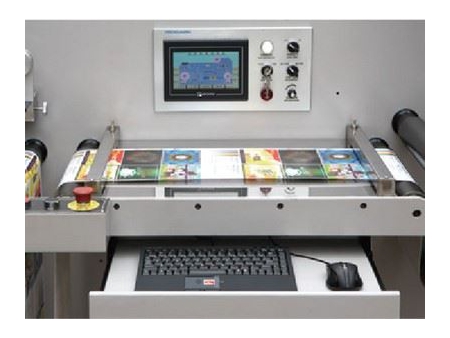

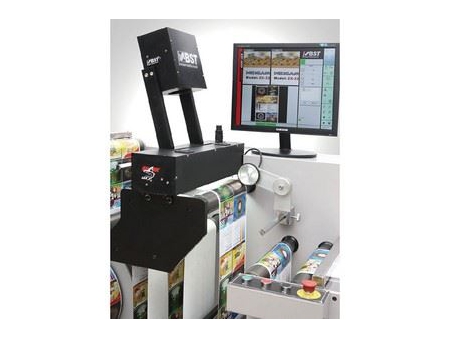

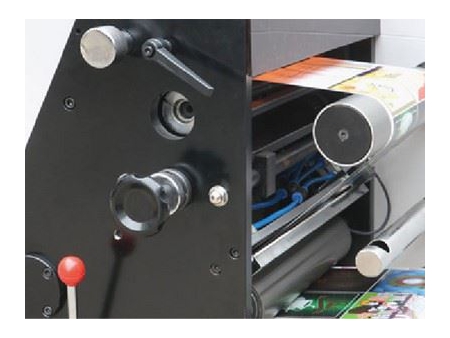

This automatic label inspecting machine utilizes advanced visual defect detection system from Germany BST company. This defective label inspecting equipment is capable of distinguishing the imperfect labels rapidly, such as skip printing, color difference, overprinting, scratch, etc. The automatic label detector is distinguished by fast testing speed and high accuracy. A slitting station is integrated with the label inspection machine for label cutting.

Specification
Max. inspecting speed 160m/min
Max. web width 320mm
Max. unwinder diameter 650mm
Max. rewinder diameter 650mm
Slitting width 20mm-300mm
Total power 5kW
Power supply 380V, 3-phase
Weight 1450kg
Dimension: 2850×1000×1500mm
