Ratchet Chain Load Binder
Request a Quote
Features
● It meets the standard of EN12195-3.
● The handle is forged.
● It can be matched with G100 chains.
● It is a G100 eye grab hook with stop pin to ensure safety and prevent falling off.
● It can only be used for lashing but not lifting.
● Surface treatment: plastic spraying.
● Color code: blue RAL5015.
SLR1030 - G100 RACHET CHAIN LOAD BINDER
(NEW G100 GRAB HOOK WITH WELD ON RING AND SAFETY PIN)
| Item code | Weight (kg) | LC/KN | BF/KN | A±4 | D±1.5 | H±2 | E±2 | L±3 | P±1 | Lmin±4 | Lmax±4 |
| 10-SLR1030-8 | 3.71 | 50 | 100 | 50 | 12 | 98 | 10.5 | 383 | 56 | 340 | 500 |
| 10-SLR1030-10 | 5.85 | 80 | 160 | 50 | 14 | 121.5 | 13 | 390 | 65 | 365 | 525 |
| 10-SLR1030-13 | 9.34 | 134 | 268 | 72 | 20 | 159.5 | 15.5 | 392.5 | 69 | 365 | 525 |
Ultimate load is 2 times the Working Load Limit.
SLR1031-G100 RACHET CHAIN LOAD BINDER WITHOUT WELD ON LINKS AND GRAB HOOKS
| Item code | Weight (kg) | LC/KN | BF/KN |
| 10-SLR1031-8 | 2.6 | 50 | 100 |
| 10-SLR1031-10 | 4.3 | 80 | 160 |
| 10-SLR1031-13 | 5.0 | 134 | 268 |

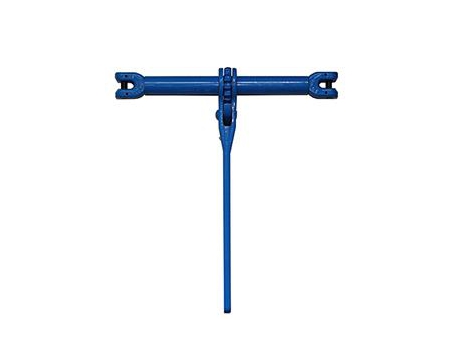

SLR1032-G100 CLEVIS TYPE RACHET CHAIN LOAD BINDER

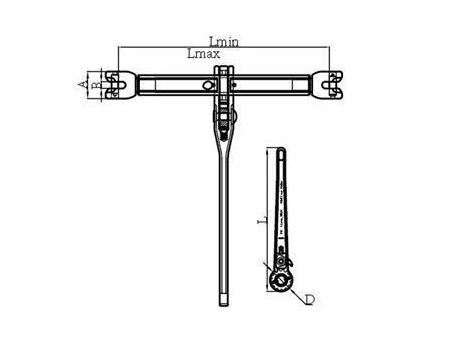

| Item code | Weight (kg) | LC/KN | BF/KN | A±1 | B±1.5 | L±3 | D±1 | Lmin±4 | Lmax±4 |
| 10-SLR1032-8 | 3.5 | 50 | 100 | 40 | 10 | 383 | 56 | 312 | 472 |
| 10-SLR1032-10 | 5.5 | 80 | 160 | 49 | 13 | 390 | 65 | 337 | 497 |
| 10-SLR1032-13 | 7.1 | 134 | 268 | 64 | 16 | 392.5 | 69 | 347 | 507 |
