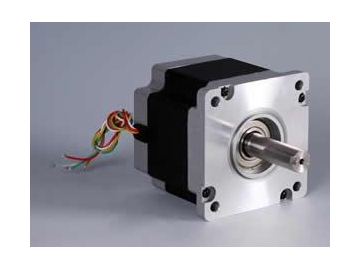

1.8 Degree Size 110mm 2-Phase High Torque Hybrid Stepper Motor

1.8 Degree Size 110mm 2-Phase High Torque Hybrid Stepper Motor
Request a Quote

Features
Large torque, high precision, large self-locking force

Application
Advertising industry: Engraving machine, laser machine
Home appliance industry: Coffee machine
Medical industry: Pharmaceutical ampoule printing machine, automatic strapping machine
Textile industry: Rotary screen printing press
Vehicle industry: Electric car

Item Specifications
Step Angle 1.8。
Step Angle Accuracy ±5% (full step, no load)
Resistance Accuracy ±10% (20℃)
Inductance Accuracy ±20% (1KHz)
Temperature Rise 80。C Max.(rated current,2 phase on)
Ambient Temperature -20。C~ 50。C
Insulation Resistance 100MΩMin. ,500VDC
Dielectric Strength 1200VAC , 1s , 5mA
Shaft Radial Play 0.02Max. (450 g-load)
Shaft Axial Play 0.08Max. (450 g-load)
Max. radial force 220N (20mm from the flange)
Max. axial force 60N
Model No. Current
per Phase
Resistance
per Phase
Inductance
per Phase
Holding
Torque
Number
of Leads
Rotor
Inertia
Weight Detent
Torque
Length
Single shaft A Ω mH N·m # g·cm2 kg kg·cm mm
FL110STH99-5504A 5.5 0.7 9.8 11.2 4 5500 5 3 99
FL110STH150-6504A 6.5 0.72 12.8 21 4 10900 8.4 5.9 150
FL110STH201-8004A 8 0.67 11 28 4 16200 11.7 7.5 201
