Paper Tube Re-Cutting Machine, Q1-1500

Paper Tube Re-Cutting Machine, Q1-1500
Paper Tube Re-Cutting Machine, Q1-1500
Paper Tube Re-Cutting Machine, Q1-1500
Request a Quote
About Us: http://witymachinery.com/1-19-5-paper-tube-re-cutting-machine.html

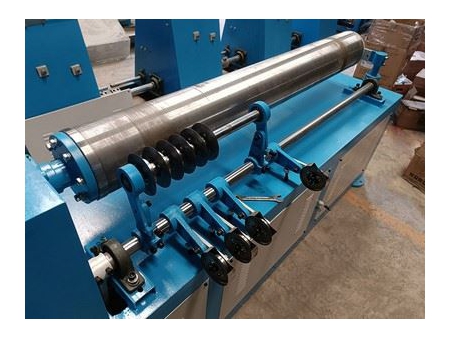

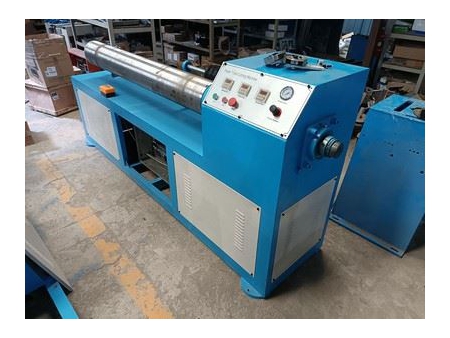

The paper tube re-cutting machine Q1-1500 is applicable for short paper tubes. The paper tube cutting equipment comes with HMI for easy operation. The PLC for the main circuit makes for the stable performance of the automatic paper tube cutter. Thanks to the automatic closing device, automatic paper tube cutting unit, and automatic opening device, it is quite easy for the user to grasp the operating skill of the paper tube cutter.

Features
  • With automatic off, automatic folder management, automatic shutdown
  • Stable performance and easy operation.
Specification
Tube length 60-1500mm
Tube diameter 50-150mm
Tube wall-thickness 1-2mm
Blade quantity 6
Cutting mode Rotary cutting
Loading and unloading Manual control
Blade feeding way Pneumatic
Operator 1 person
Speed controller Frequency inverter
Overall dimension 2400×550×1200mm
Weight 500kg
