  • DN Range of Suction Pipe: 25-65mm (1"-2.5")
  • DN Range of Discharging Pipe: 25-65mm (1"-2.5")
  • Flow Capacity Range: 25-150GPM
  • Head Range: 0-163m
  • Power Range: 2.2-11kW

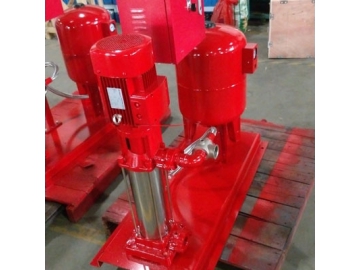

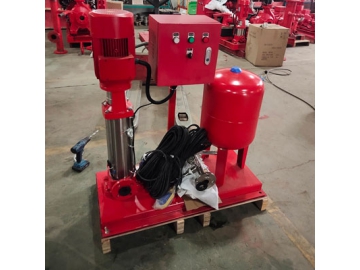

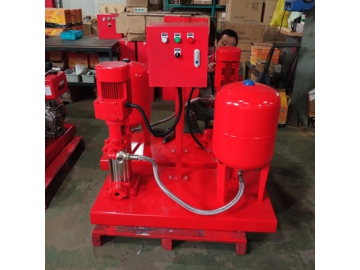

PVT series fire pump set is composed of vertical multistage jockey pump, control panel, pressure vessel, base plate and piping system. The pump will start automatically depending on the pressure. Various materials are optional to construct the fire pump set, which can be customized to adapt to customer's specific requirements.

PVT series vertical multistage jockey pump is featured by high head, enabling it to be used as pressure-stabilizing pump in firefighting water supply system to maintain the pressure stability.

The capacity of fire pump pressure vessel will vary depending on the pressure of the fire protection system.
