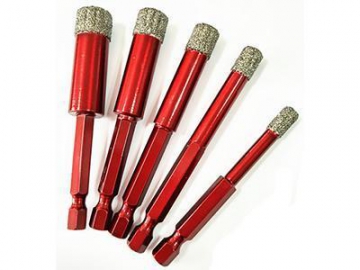

VSDH Diamond Core Drill Bit (Hexagon Shank)
The diamond dry core drill bit(hexagon shank) is used for the drilling of ceramics, marble, granite, artificial slate, applicable to handheld electric tools.
1. The use of brazing sintering process makes this diamond dry core drill bit more efficient.
2. The injected paraffin in core helps for cooling making it more smooth on drilling and prolonging the service life of dry drilling.
3. The design of hexagon shank is for matching with various kinds of handheld drill that can firmly grasp the drill bit to prevent skidding.
| Item No. | Diameter (mm) | Diamond length (mm) | Working length (mm) | Connection |
| | 5 | 10 | 32mm | hexagon handle |
| | 6 | 10 | 32mm | hexagon handle |
| | 8 | 10 | 40mm | hexagon handle |
| | 10 | 10 | 40mm | hexagon handle |
| | 12 | 10 | 40mm | hexagon handle |
| | 14 | 10 | 40mm | hexagon handle |
| | 16 | 10 | 40mm | hexagon handle |
| | 18 | 10 | 40mm | hexagon handle |
LIKN Tools offer a wide range of industrial cutting, drilling, grinding and polishing tools, specialize in manufacturing all kinds of diamond cutting and grinding tools for ceramic tiles, porcelain tiles, concrete floors, marble floor, reinforced plastic composite, etc. With over 20 years' experienced team in making industrial tools, we are offering durable diamond tools with competitive prices.
