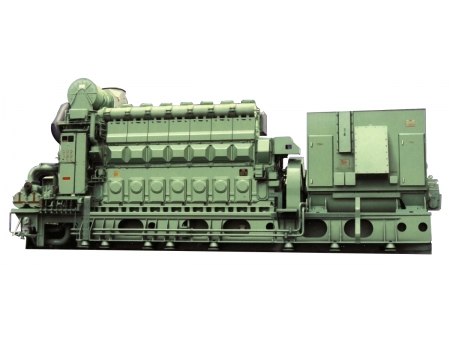

2000 Diesel Generating Set

HIGH QUALITY AND EFFICIENCY WIDE POWER RANGE
Description of 2000 Diesel Generating Set
  • State-of-the-art design, convenient maintenance
  • No leakage of oil, water and gas
  • Power: 300~800KW
  • Net weight: 3000~8000Kg
  • No-load voltage regulation: 95~105% of rated voltage
  • Diesel generator can be customized upon request
Click Here to
Applications

The diesel engine it used can meet the power requirements of drilling rigs, engineering machinery etc. In addition, two or more diesel generating sets can be used to form a power station.

The project drawing of exterior view and interface size
Specification of 2000 Diesel Generating Set
Set model Diesel engine model Generator model Rated power (KW) Rated voltage
(V)
Rated frequency (HZ) Overall dimensions L*B*H (mm) Net weight (Kg)
300GF4 G8V190PZL-2 1FC5404-6TA42 300 400/230 50 5270×2040×2778 3000
500GF17-2 G12V190ZLD1-2 1FC6456-6LA4 500 400/230 50 5925×2040×2678 5000
700GF1-3 G12V190ZLD1 1FC6456-4LA4 700 400/230 50 5925×2040×2678 7000
700GF1-K3 G12V190ZLD1 LV1634D2 700 400/230 50 4515×2040×2678 7000
800GF4-7 G12V190ZLD2 1FC6502-4LA42 800 400/230 50 5925×2040×2678 8000
800GF4-K1 G12V190ZLD4 1FC6502-4LA42 800 400/230 50 4515×2040×2678 8000
800GF4-K4 G12V190ZLD4 LV1634E2 800 400/230 50 4515×2040×2678 8000
800GF6 G12V190ZLD5 JFG5001-4/6300 800 6300 50 5925×2040×2678 8000
800GF7 G12V190ZLD5 1FC6502-4LA42 800 400/230 50 5925×2040×2678 8000
800GFZ-1 G12V190ZLD3 1FC6502-4LA42 800 400/230 50 5925×2040×2678 8000
Main Electrical Performance Data
Voltage Frequency
Steady-state adjusting rate Transient-state adjusting rate Stable time Fluctuation rate Steady-state adjusting rate Transient-state adjusting rate Stable time Fluctuation rate
±2.5% ﹣15%~+20% 1.5S 0.5% 5% ±10% 7S 0.5%
Voltage regulation range: no-load voltage regulation: 95~105% of rated voltage
Control Panel

    The control panel of the diesel generating set is mainly used to control the power transmission of generator sets, providing protections for lack-voltage, over-current, automatic speed regulation and reverse power. Meanwhile, it also can monitor such parameters as revs, water temperature, oil temperature, oil pressure and exhaust temperature, with a sound-light alarming output system.
