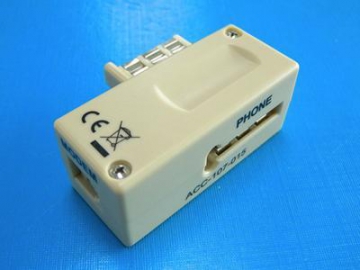

FX-FR06A DSL Filter with ADSL Splitter

Description
The FX-FR06A DSL filter splitter has French plug and jack with US RJ11 socket. The filter is suitable in France.

Parameters
  • Performance parameter
      Mechanical durability: more than 500 times for plug in and plug out
      Direct current resistance: <25Ω
      Insulation resistance: >10MΩ
      Frequency distortion loss: ±1.0dB (200~4 KHz)
      Insertion loss: <0.3 dB (1KHz)
      Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
      DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%~96%
  • Materials
      Case Shell: ABS
      Pin: nickel plated brass
      RJ11 socket: ABS/gold plated phosphor copper
      Weight: 37.1g
FX-FR06S DSL Filter with ADSL Splitter

Description
The FX-FR06S DSL filter splitter has French plug and jack with US RJ11 socket. The filter is suitable in France.

Parameters
  • Performance parameter
      Mechanical durability: more than 500 times for plug in and plug out
      Direct current resistance: <25Ω
      Insulation resistance: >10MΩ
      Frequency distortion loss: ±1.0dB (200~4 KHz)
      Insertion loss: <0.3 dB (1KHz)
      Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
      DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
      Adaptive temperature: -20℃~+60℃
      Adaptive humidity: 0%~96%
  • Materials
      Case Shell: ABS
      Pin: nickel plated brass
      RJ11 socket: PBT/gold plated phosphor copper
      Weight: 38.1g

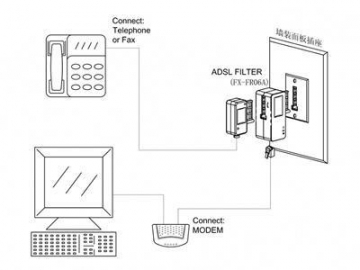

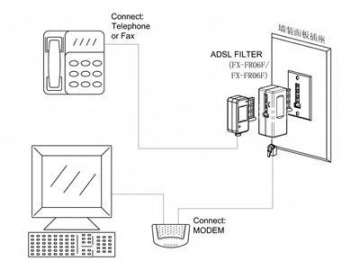

Installation

Connect the plug of DSL Filter to the telephone wall jack.
Plug the telephone line to the socket of DSL filter splitter which marked "PHONE" or phone symbol.
Connect the DSL modem to the RJ11 socket of DSL filter splitter which marked "MODEM" or computer symbol.

Follow the above steps, you can use the telephone and surf the internet at the same time.

The high quality DSL filter shown above is designed for broadband internet connection over telephone lines. You can choose the right products according to plug types of the equipment. We can also customize the DSL filter splitters to meet the specific requirements of your communication system.
