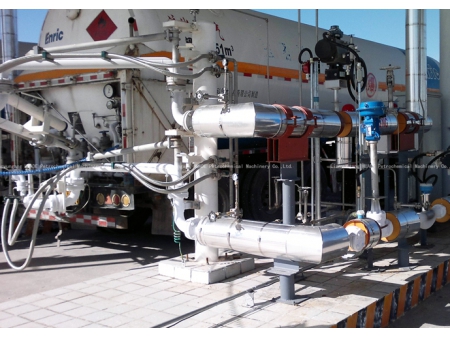

These bottom loading arms are particularly designed for the transfer of cryogenic media such as liquefied natural gas (LNG), ethylene, etc.

Specifications

Transfer medium: liquefied natural gas (LNG), cryogenic ethylene, liquid oxygen, and other cryogenic media
Nominal diameter: DN50~DN80
Design pressure: -0.06MPa~2.0MPa
Design temperature: -196℃~ 60℃
Pipeline material: 304L/316L stainless steel

Features
  • Gaseous phase arm for vapor recovery, liquid phase arm for liquid transfer;
  • Cryogenic swivel joint is designed with double ball race, and provided with nitrogen purging system to keep raceway dry and prevent the swivel joint from freezing in cryogenic applications;
  • Swivel joints are precisely processed and assembled, providing the loading arm with great reliability and low resistance, therefore allowing for one-person operation;
  • Each loading arm is put through rigorous strength testing, air tightness testing, cryogenic testing and leakage testing to guarantee the high quality and reliable performance;
  • Pressurized pipeline can be added to speed up tanker loading and unloading;
