Symons Cone Crusher
Request a Quote

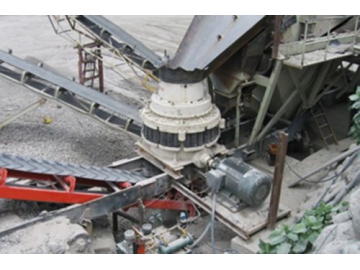

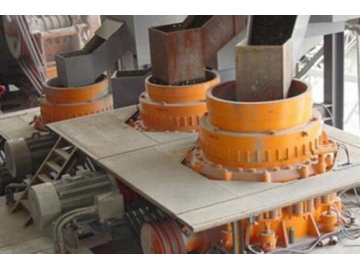

Yate Symons cone crusher is an optimized cone crusher machine commonly used for secondary, tertiary or quaternary crushing. The Symons cone crusher operates by a unique chamber design which is flatter and it works at almost twice the rotational speed of a primary type counterparts. And this optimized Symons cone crushing machine is widely applied in mining, building materials, metallurgy and other industries, mainly for medium and fine crushing of various metal ores, basalt, granite, limestone, pebbles, sandstone and other materials of medium and medium hardness.
Features
- Compared with same level of model, the production volume of this Symons cone crusher has increased by 100% or more;
- Long service life of wearing parts, great working efficiency, high crushing rate and cost-effective;
- The Symons cone crusher offers exactly eight types of crushing cavity to choose from, so as to meet all your needs;
- This Symons cone crusher is highly automatic with hydraulic adjustment, hydraulic locking and hydraulic cavity cleaning settings, which can improve crushing efficiency to a large extent;
- Lower noise, less dust;
Technical data
| Model | Crushing cone diameter | Cavity | Feeding size (mm) | Minimum discharge size (mm) | Motor power (kW) | Weight (not include motor) (t) | |
| Feet (mm) | CSS | OSS | Inch (mm) | (kW) | (t) | ||
PYS-Y0910 | 3 (900) | F | 35/8(83) | 41/89(102) | 3/8(10) | 75 | 14.6 |
PYS-Y0917 | C | 63/8(159) | 7(175) | 1/2(13) | |||
PYS-Y0918 | EC | 61/2(163) | 71/8(163) | 1(25) | |||
PYS-D0904 | 3 (900) | F | 1/2(13) | 15/89(41) | 1/8(3) | 75 | 15 |
PYS-D0906 | M | 15/16(33) | 23/8(61) | 1/8(3) | |||
PYS-D0907 | C | 2(51) | 3(76) | 1/4(6) | |||
PYS-Y1313 | 4 1/4 (1295) | F | 43/8(109) | 53/89(137) | 1/2(13) | 155 | 26.2 |
PYS-Y1321 | M | 71/2(188) | 81/4(210) | 5/8(16) | |||
PYS-Y1324 | C | 85/8(216) | 95/89(241) | 3/4(19) | |||
PYS-Y1325 | EC | 91/2(238) | 103/8(259) | 1(25) | |||
PYS-D1306 | 4 1/4 (1295) | F | 11/8(29) | 21/2(64) | 1/8(3) | 155 | 26.7 |
PYS-D1308 | M | 21/8(54) | 31/2(89) | 1/4(6) | |||
PYS-D1310 | C | 23/4(70) | 41/8(105) | 3/8(10) | |||
PYS-D1313 | EC | 37/8(98) | 51/4(133) | 5/8(16) | |||
PYS-Y1620 | 5 1/2 (1676) | F | 71/2(188) | 83/8(209) | 5/8(16) | 240 | 50.2 |
PYS-Y1624 | M | 81/2(213) | 95/8(241) | 7/8(22) | |||
PYS-Y1626 | C | 95/8(241) | 103/4(268) | 1(25) | |||
PYS-Y1636 | EC | 131/4(331) | 141/2(368) | 11/2(38) | |||
PYS-D1607 | 5 1/2 (1676) | F | 13/8(38) | 23/49(70) | 3/16(5) | 240 | 50.7 |
PYS-D1608 | M | 21/8(54) | 31/2(89) | 1/4(6) | |||
PYS-D1613 | C | 37/8(98) | 51/4(133) | 3/8(10) | |||
PYS-D1614 | EC | 45/8(117) | 51/4(133) | 1/2(13) | |||
PYS-YC2127 | 7 (2134) | F | 101/8(253) | 111/8(278) | 3/4(19) | 400 | 104 |
PYS-YC2133 | M | 121/8(303) | 133/8(334) | 1(25) | |||
PYS-YC2136 | C | 133/8(334) | 143/4(369) | 11/4(31) | |||
PYS-YC2146 | EC | 163/8(425) | 181/8(460) | 11/2(38) | |||
PYS-DC2110 | 7 (2134) | F | 2(51) | 41/8(105) | 3/16(5) | 400 | 105 |
PYS-DC2113 | M | 33/4(95) | 51/4(132) | 3/8(10) | |||
PYS-DC2117 | C | 5(127) | 7(178) | 1/2(13) | |||
PYS-DC2120 | EC | 6(152) | 8(203) | 5/8(16) | |||
- EC: Extra coarse
- C: Coarse
- M: Medium
- MF: Medium fine
- F: Fine
- EF: Extra fine
- CX: Slightly coarse
