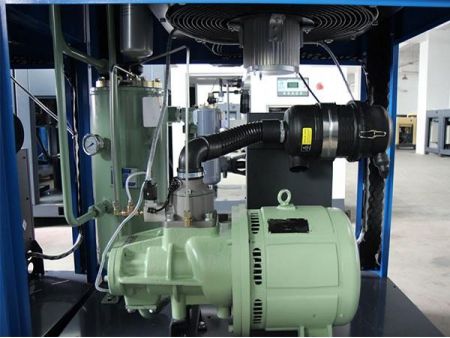

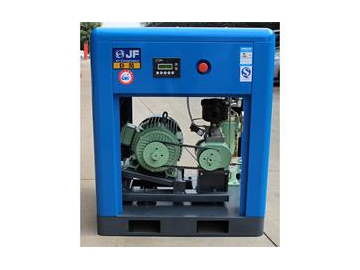

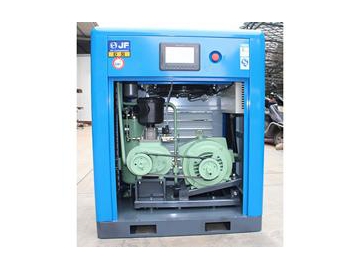

45KW Belt Drive Rotary Screw Air Compressor

45KW Belt Drive Rotary Screw Air Compressor
45KW Belt Drive Rotary Screw Air Compressor
45KW Belt Drive Rotary Screw Air Compressor
45KW Belt Drive Rotary Screw Air Compressor
45KW Belt Drive Rotary Screw Air Compressor
Request a Quote
Technical Parameters
Model Power
kw
FAD m3/min Pressure
MPa
Dimension (L*W*H) mm Weight kg Noise dB(A) Air outlet diameter
JF-60A 45 7.4 0.7 1320x1000x1500 900 73±2 G1 1 / 2 "
7 0.8
6.2 1.0
5.6 1.2
5 1.3

Features
1. Belt drive rotary screw air compressor has a simple structure, which is quite suitable for drives whose center distance between two shafts is relatively long;

2. Its transmission works smoothly and silently, and it allows the absorption of impact and vibration.

3. In continuous operation on overload, belt will slip on belt wheel. In this way, a protection towards belt wheel is equipped.

4. The transmission ratio of our air compressor will have a relatively low accuracy.

Jufeng is a reliable rotary screw air compressor manufacturer and 45KW belt drive rotary screw air compressor supplier. Our belt drive air compressors are available with power from 5.5KW to 55KW. Equipped with complete manufacturing and assembly lines, we offer quality belt drive rotary screw compressor and compressed air treatment equipment for customers.
