Request a Quote

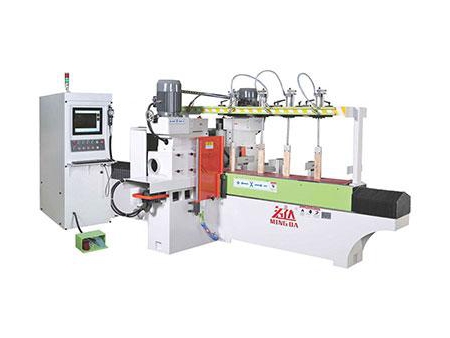

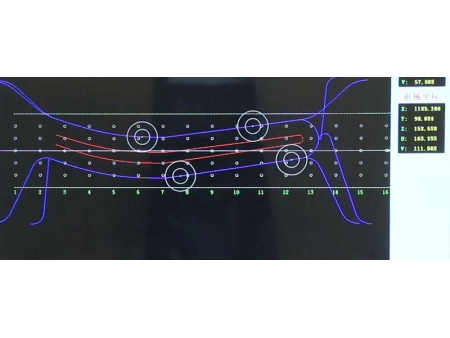

The CNC 5 axis copying lathe is suitable for different wood furniture processes, including lathe, shaping, milling, and sanding. This equipment uses an advanced CNC system to carry out instructions according to CAD drawing tools, ensuring it is easy to learn and safe to operate.

Compared to traditional processing methods, a CNC copying lathe saves time and money, and it is equipped with high quality components, including a Siemens spindle motor, and a HIWIN linear guideway. It is safe and easy to operate, and is equipped with a number of different functions to meet processing requirements.

Models available

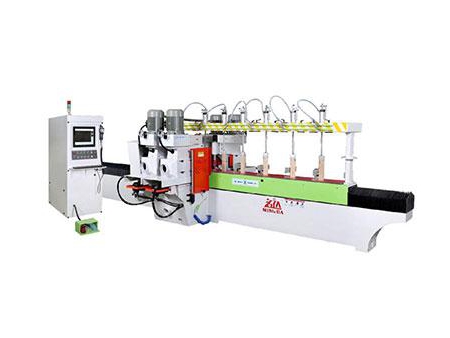

    1. double sided copying lathe
    1. 4 sided copying lathe

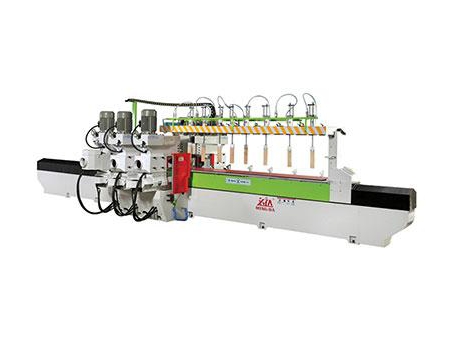

    1. 6 sided copying lathe
Models available (1)double sided copying lathe/4 sided copying lathe
Model MDX-1500T2 MDX-2400T2 MDX-1500T4 MDX-2400T4
Function Double sided milling Double sided mlling 4 sided milling+sanding 4 sided milling+sanding
Working length 1500mm 2400mm 1500mm 2400mm
Working width 350mm 350mm 350mm 350mm
Working thickness 180mm 180mm 180mm 180mm
Speed 50m/min 50m/min 50m/min 50m/min
Spindle motor (knife cutter)7.5kw*2 (knife cutter)7.5kw*2 (knife cutter)7.5kw*2
(Sanding)5.5kw*2
(knife cutter)7.5kw*2
(Sanding)5.5kw*2
X axis servo 1.5kw 3.0kw 2.0kw 3.0kw
Y axis servo 1.0kw 1.0kw 1.0kw 1.0kw
Z axis servo 1.0kw 1.0kw 1.0kw 1.0kw
U axis servo 1.0kw 1.0kw
V axis servo 1.0kw 1.0kw
Vacuuming mouth size 6 Inch*6 6 Inch *6 6 Inch *10 6 Inch *10
Machine size 4500*2450*1750mm 6450*2450*1750mm 5300*2450*1750mm 7200*2450*1750mm
Weight 2500KG 3500KG 3000KG 3800KG
(2)6 sided copying lathe
Model MDX-1500T6 MDX-1500T4S2 MDX-2400T6 MDX-2400T4S2
Function 6 sided milling + sanding 4 sided milling + sanding 6 sided milling + sanding 4 sided milling + sanding
Working length 1500mm 1500mm 2400mm 2400mm
Working width 350mm 350mm 350mm 350mm
Working thickness 180mm 180mm 180mm 180mm
Speed 100m/min 100m/min 100m/min 100m/min
Spindle motor (knife cutter)11kw*2
(shaper)7.5kw*2
(Sanding)5.5kw*2
(knife cutter)11kw*2
(shaper)7.5kw*2
(Sanding)5.5kw*2
(knife cutter)11kw*2
(shaper)7.5kw*2
(Sanding)5.5kw*2
(knife cutter)11kw*2
(shaper)7.5kw*2
(Sanding)5.5kw*2
X axis servo 1.5kw 1.5kw 2.9kw 2.9kw
Y axis servo 0.85kw 0.85kw 0.85kw 0.85kw
Z axis servo 0.85kw 0.85kw 0.85kw 0.85kw
U axis servo 0.85kw 0.85kw 0.85kw 0.85kw
V axis servo 0.85kw 0.85kw 0.85kw 0.85kw
Vacuuming mouth size 6 Inch*12 6 Inch*12 6 Inch*12 6 Inch*12
Machine size 6550*3000*1750mm 8500*3000*1750mm 6550*3000*1750mm 8500*3000*1750mm
Weight 4000KG 4500KG 4000KG 4500KG
Components

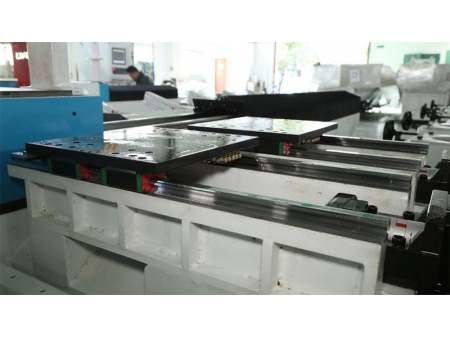

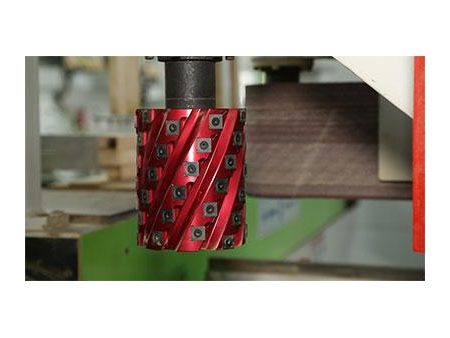

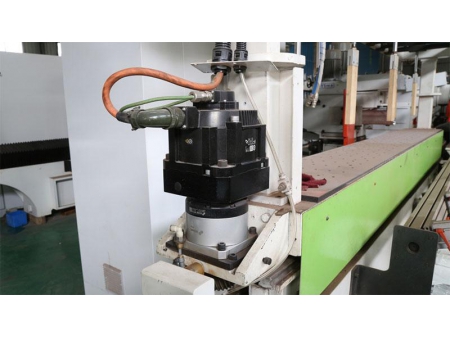

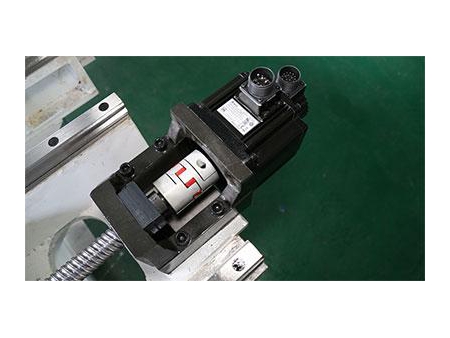

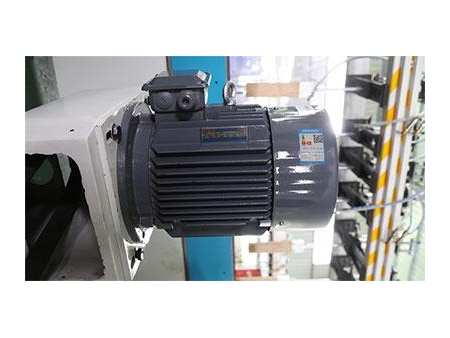

Key components of the CNC 5 axis copying lathe, including the linear guideway, drive system, electronic control, and electric elements all are sourced from internationally known brand names for stability and safety.
