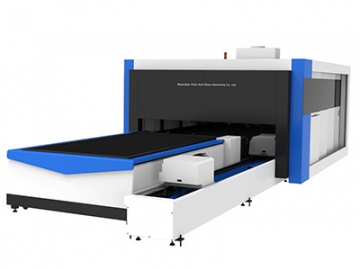

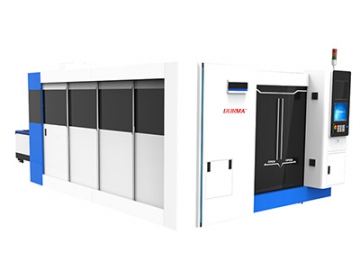

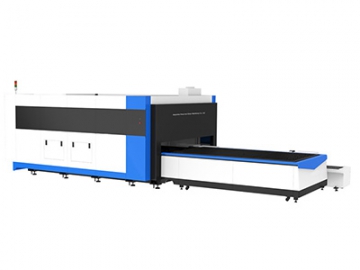

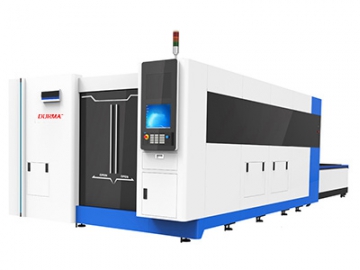

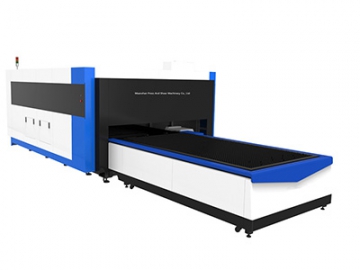

Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type

Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Fiber Laser Cutting Machine with Tube Cutting, Enclosed Type
Request a Quote
About Us: http://cnc-lasercutting.com/1-2-fiber-laser-cutting-machine.html
  • Key Parameters
    1. Working table: Sawtooth table
    2. Maximum idle running speed: 130m/min
    3. Fiber laser source: Raycus/IPG
    4. Fiber laser cutting head: Raytools/WSX

Technical Specifications:

Model PS3015 PS4015 PS4020 PS6020
Working area 3000*1500mm 4000*1500mm 4000*2000mm 6000*2000mm
Laser power 500W 800W 1000W 1500W 2000W 3000W 4000W 6000W
Laser wavelength 1064nm
Working table Sawtooth table
Maximum idle running speed 1200mm/s
Positioning accuracy ±0.05mm/m
Positioning speed 20m/min
Minimum line width ±0.02mm
Cutting thickness ≤24mm
Control system Cypcut
Positioning method Red dot
Power consumption ≤12kW
Power supply 380V/50Hz
Auxiliary gas Oxygen, nitrogen, air
Service life of fiber module More than 100,000 hours
Fiber laser cutting head Lasermech made in USA
Focus lens Lasermech made in USA
Drive system 1500W Fuji servo motor made in Japan
Linear guide PMI made in Taiwan (Option THK made in Japan)
Transmission system Dual rack and pinion motion system
Rack system made in Germany
Energy chain system IGUS made in Germany
Warranty 3 years

Components:

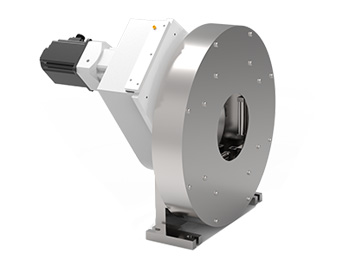

  • Pneumatic Chuck Clamping
  • Cast Aluminum Beam:

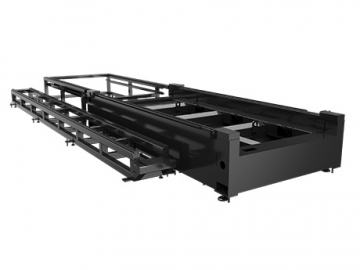

  • Steel plate welding

Cutting Capacity:

  • Fiber/Thickness
    1. 0mm
    2. 5mm
    3. 10mm
    4. 15mm
    5. 20mm
    6. 25mm
    7. 30mm
    8. 35mm
1000W
Mile Steel
Stainless Steel
Aluminum
1500W
Mile Steel
Stainless Steel
Aluminum
2000W
Mile Steel
Stainless Steel
Aluminum
3000W
Mile Steel
Stainless Steel
Aluminum
4000W
Mile Steel
Stainless Steel
Aluminum
6000W
Mile Steel
Stainless Steel
Aluminum
8000W
Mile Steel
Stainless Steel
Aluminum

Features:

  • Acceleration speed: 19.6m/s2 (2G)
  • Maximum simultaneous positioning speed: 160m/min
  • Precision: ±0.05mm
  • Energy efficiency with great reduction of power consumption
  • Excellent cutting quality for small and medium thickness metal sheets
  • IPG resonator: power output from 1kW to 6kW
  • Precitec cutting head with power output of 3kW
  • Precitec HP cutting head for power output over 3kW
  • Fully enclosed and cabined machine for maximum protection for the operator
  • Effective gas exchange system from high to low pressure
  • Capacitive sensor, high pressure cutting head
  • ECO cutting parameter table
  • Pre-cut protective film
  • Power output control function for automatically mechanical nesting (corners, lead-ins)
  • Automatic time and cost calculation for pieces
  • Network connection via external PC
  • Automatic table exchanger (included in the models of this series)
  • Smoke extraction system (included in the models of this series)
  • 3-point reference sensor (sheet metal rotation detection)
  • Piercing sensor (detecting the completion of piercing)
  • Collection of work pieces and trimmings
  • Dual proportional valve control system for different gas pressures and special system for high pressure cutting

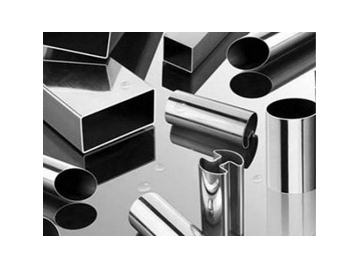

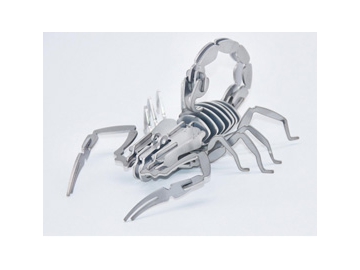

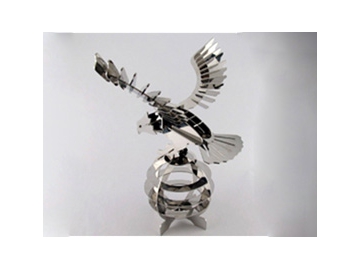

Sample Display:
