Application

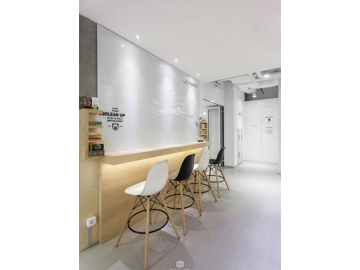

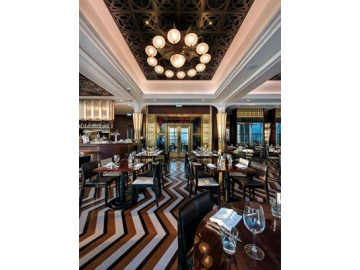

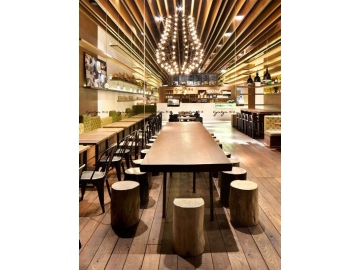

The color temperature of G4-3014 LED light bulb can be selected from Warm White, Daylight White or Natural White. The LED light bulb can be used in malls, hotels, bars, residential housing and other application sites.
Specification

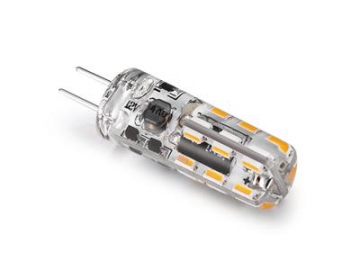

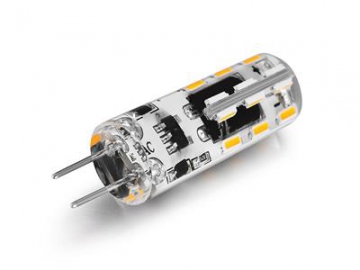

G4-3014-24LED AC/DC12V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | | AC/DC 12V | Silica gel | 2.7g | 89-95 lm | 85-90 M/W | 1.1 - 1.3W | =1 | 360° | 24*3014SMD | No | electrolytic capacitor |
G4-3014B-24LED AC/DC 12V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | AC / DC10-16V | Silica gel | 2.8g | 85-95 lm | 80-90 lm/W | 1.0-1.3W | 0.7-1.0 | 360° | 24x3014SMD | No | CRI≥80 |
G4-3014B-48LED AC/DC 12V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | | AC / DC10-16V | Silica gel | 4.5g | 160-180 lm | 80-90 lm/W | 1.6-1.8W | 0.7-1.0 | 360° | 48x3014SMD | No | CRI≥80 |
G4-3014B-57LED AC/DC 12V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | | AC / DC10-16V | Silica gel | 7.5g | 180-200 lm | 80-90 lm/W | 2.0-2.3W | 0.7-1.0 | 360° | 57x3014SMD | No | CRI≥80 |
G4-3014B-81LED AC/DC 12V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | | AC / DC10-16V | Silica gel | 10.2g | 280-300 lm | 80-90 lm/W | 3.1-3.3W | 0.7-1.0 | 360° | 81x3014SMD | No | CRI≥80 |
G4-3014B-24LED DC 12V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | DC12V | Silica gel | 2.8g | 85-95 lm | 75-85 lm/W | 1.2-1.5W | =1.0 | 360° | 24x3014SMD | Yes | CRI≥80 |
G4-3014B-48LED DC 12V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | DC12V | Silica gel | 4.5g | 150-170 lm | 70-85 lm/W | 1.6-1.8W | =1.0 | 360° | 48x3014SMD | Yes | CRI≥80 |
G4-3014B-48LEDDC 24V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | | DC24V | Silica gel | 4.5g | 150-170 lm | 70-85 lm/W | 1.6-1.7W | =1.0 | 360° | 57x3014SMD | Yes | CRI≥80 |
G4-3014B-57LEDDC12VG4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | DC12V | Silica gel | 7.5g | 180-200 lm | 85-95 lm/W | 2.0-2.3W | =1.0 | 360 | 57x3014SMD | Yes | CRI≥80 |
G4-3014B-24LEDAC110/220VG4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | | AC110V / 220V | Silica gel | 2.6g | 85-95 lm | 55-65 lm/W | 1.8-1.9W | ＞0.35 | 360° | 24x3014SMD | No | CRI≥80 |
G4-3014B-32LEDAC110V/220VG4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | | AC110V / 220V | Silica gel | 4.5g | 130-150 lm | 70-80 lm/W | 1.9-2.0W | ＞0.33 | 360° | 32x3014SMD | No | CRI≥80 |
G4-3014-32LEDAC 110/220V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | | AC110/220V | Silica gel | 3.1g | 140-160 lm | 70-80 lm/W | 1.9-2.0W | ＞0.33 | 360° | 32x3014SMD | No | Extended version |
G4-3014B-48LED AC110V/220V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | AC110V/
220V | Silica gel | 4.5g | 140-160 lm | 70-80 lm/W | 2.0-2.2W | ＞0.25 | 360° | 48x3014SMD | No | CRI≥80 |
G4-3014B-64LED AC110V/220V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | | AC110V / 220V | Silica gel | 7.5g | 160-180 lm | 70-80 lm/W | 2.2-2.4W | ＞0.33 | 360° | 64x3014SMD | No | CRI≥80 |
G4-3014B-72LED AC110/220V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | AC110V / 220V | Silica gel | 9.8g | 190-210 lm | 75-85 lm/W | 3.0-3.3W | ＞0.93 | 360° | 72x3014SMD | Yes | CRI≥80 |
G4-3014B-104LED AC110/220V G4 SMD LED Light Bulb | Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
| | | AC110V / 220V | Silica gel | 11.2g | 250-270 lm | 70-80 lm/W | 3.2-3.4W | ＞0.4 | 360° | 104x3014SMD | No | CRI≥80 |
Lamp cap specification
Color temperature
- Warm White (2800~3000K)
- Natural White (4000~4500K)
- Daylight White (6000~6500K)
Feature
1. The lamp base of G4-3014-LED light bulb uses the international standard G4 in-line pins (0.7*12mm, 4mm interval between pins) to make installation convenient. The LED light can therefore be used in all kinds of quartz lamps to replace traditional halogen lamps and filament lamps.
2. The LED light bulb adopts 3014 SMD LED beads as the light source, and therefore features low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
3. G4-3014-LED light bulb features gentle light, high luminous efficacy, instant lit after turning on, and bears no strobe or light spots so that the product can protect customers' eyes effectively.
4. The LED light bulb has high luminous power and outstanding color rendering property. Consequently it suffices to replace the traditional 10W-20W halogen lamps and filament lamps.
5. G4-3014-LED light bulb emits no heat radiation, contains no mercury to practice environmental friendliness.
6. The LED light bulb applies high transparency silica gel sealing to achieve a 360 degree beam angle, high luminous power and enhanced brightness.7. The surface temperature of the LED light product is controlled under 80°. The product uses JCET's Schottky diode as rectifier bridge, so there is no need for distinguishing electrodes.
8. All components of the G4-3014-LED adopts SMD techniques to enable high automation during manufacturing and increase production efficiency.
9. Matching jig is used throughout the manufacturing of the LED light bulb to avoid inclined pins. Sufficient gel is irrigated to ensure no PCB board is bare and secure waterproof property of the product.
Packaging style
Shunfa is a reliable G4 LED bulb and SMD LED manufacturer, G4 bi-pin 3014 SMD LED light bulb supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for home lighting, commercial lighting, hotel lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality G4 LED light bulbs with custom service.
