Request a Quote

Colloid mill machine, Sanitary processing equipment

The base and motor of the JMF Split Type Colloid Mill are separated to avoid material leakage which may cause damage to the motor. This series of colloid mills features strong stability, simple operation and long service life. By changing the transmission ratio of the belt drive, they can increase the rotational speed to cater the needs of smaller particles.

Form
Construction
  • Circulation Pipe
  • Motor Cover
  • Outlet
  • Base
  • Hopper
  • Cooling Pipe Fittings
  • Handle
  • Adjust Disc
  • Three-way Valve
Colloid mills are produced in two structures:

1) Recirculating pipe type: materials can be ground over and over again, used for slightly viscous materials, such as soya and mung beans.
2) Square-mouth outlet type: materials can be ground quickly, used for highly viscous products, such as peanut butter and chili paste.

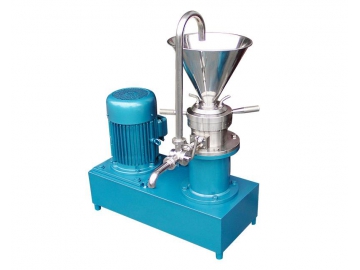

  • Conventional Colloid Mills

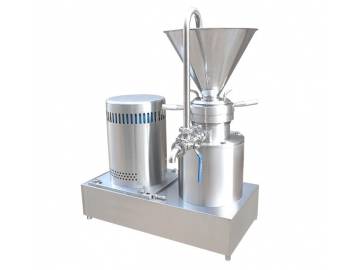

  • Sanitary Colloid Mills (Recirculating Pipe)

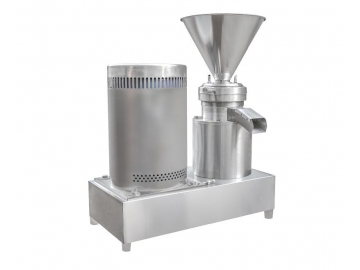

  • Sanitary Colloid Mills (Square-mouth Outlet)
Model Power (kw)Speed (r/min)Fineness (um)Output (t/h)Diameter of Scafe (mm)Cooling Pipe(mm)Outlet (mm)Inlet (mm) Weight (kg)Dimensions (LxWxH) mm
JMF-501.529002-400.01-0.15010203060255x500x700
JMF-651.5/2.229002-400.02-0.56510203065500x345x675
JMF-80329002-400.3-180122548150700x570x920
JMF-1005.5/7.529002-400.5-2100122566240800x645x900
JMF-1207.529002-400.5-3120123266250800x645x900
JMF-1407.5/1129002-400.5-4140123266275800x750x1020
JMF-20015/18.529002-401-102001238100400900x850x1200
Features
  • With the exception of the motor, all parts that have contact with materials are made of sanitary stainless steel to resist contamination.

  • The maximum rotational speed of colloid mill can reach 2900 (r/min), capable of crushing materials instantaneously.

  • Colloid mills can adjust the degrees of fineness in order to serve different materials efficiently.

  • Quick changeover makes it simple to install and easy to clean.
