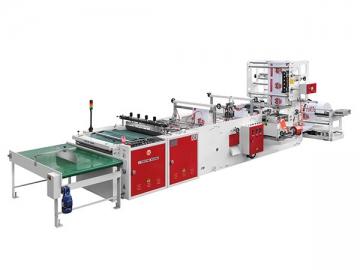

CW-800SP Fully Automatic Patch Handle Bag Making Machine

<span class=new-btn>CW-800SP Fully Automatic Patch Handle Bag Making Machine</span>
<span class=new-btn>CW-800SP Fully Automatic Patch Handle Bag Making Machine</span>
<span class=new-btn>CW-800SP Fully Automatic Patch Handle Bag Making Machine</span>
<span class=new-btn>CW-800SP Fully Automatic Patch Handle Bag Making Machine</span>
<span class=new-btn>CW-800SP Fully Automatic Patch Handle Bag Making Machine</span>
<span class=new-btn>CW-800SP Fully Automatic Patch Handle Bag Making Machine</span>
Request a Quote
About Us: http://cwbagmachinery.com

Features of the patch handle bag making machine
1. With servo motor drive, PLC and touch screen control
2. Machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity.
3. Any different type of the bag with several use as options, easy to replace

Option
1. Double sealing knife
2. Bottom sealing knife
3. Air hole punching unit

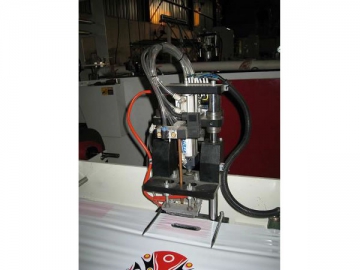

  • Patch film sealing device
  • Punch

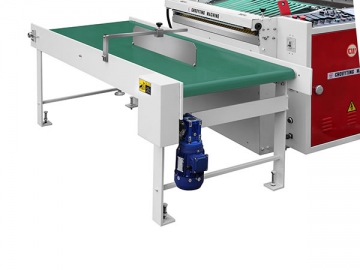

  • Auto conveyor table
Technical parameter of the patch handle bag making machine
Model CW-800SP
Length of bag making 250-750mm
Width of bag making 600mm
Speed of bag making 60pcs/min
Bottom gusset 20-70mm
Total power 10kw
Weight of machine 3200kgs
Overall dimension 6000x3100x1870 mm
Air compressor 6HP

Related names
Plastic bag making machine
Bag making machine
Patch handle bag machine
Plastic shopping bag machine
