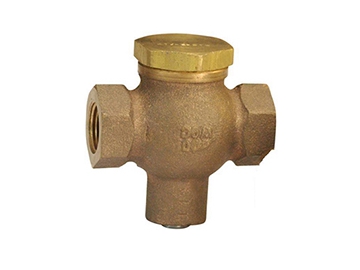

In Line Check Valves, Vertical or Horizontal Installation

In Line Check Valves, Vertical or Horizontal Installation
In Line Check Valves, Vertical or Horizontal Installation
In Line Check Valves, Vertical or Horizontal Installation
In Line Check Valves, Vertical or Horizontal Installation
Request a Quote
  • Working pressure: 250 PSI
  • Temperature range: -40 °F to 450°F (-40℃ to 230℃)
  • Cracking pressure: 3 PSI
  • Applications: Air compressor discharge hose assemblies, may also be used in the water or oil industry

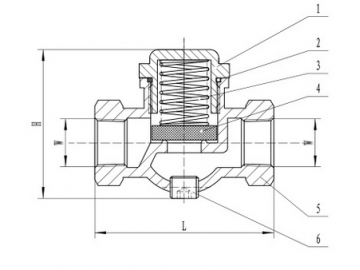

Part # Part Name Material
6 Plug Brass
5 Body Bronze
4 Gasket PTPF
3 Spring S.S
2 O-ring HNBR
1 Cap Brass
Item #
Size
W L H
In. mm In. mm
1/8'' 1/8 1.75 44.45 1.63 41.40
1/4'' 1/4 1.75 44.45 1.63 41.40
3/8'' 3/8 2.19 55.63 1.88 47.75
1/2'' 1/2 2.50 63.50 2.13 54.10
3/4'' 3/4 2.88 73.15 2.50 63.50
1'' 1 3.50 88.90 2.88 73.15

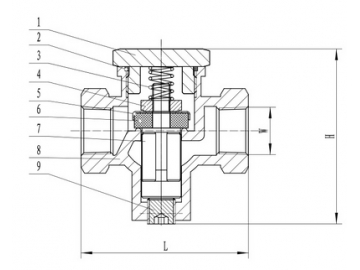

Part # Part Name Material
9 Plug Brass
8 Body Bronze
7 Valve Core Bronze
6 Gasket PTPF
5 Seal Pad Brass
4 Nut Brass
3 Spring S.S
2 O-ring HNBR
1 Cap Brass
Item #
Size
W L H
In. mm In. mm
1/4'' 1/4 2.19 55.63 2.38 60.45
3/8'' 3/8 2.38 60.45 2.52 64.01
