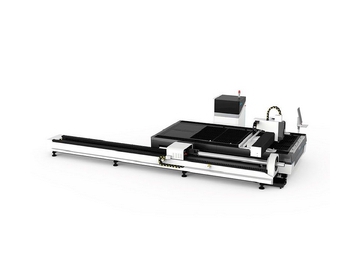

Sheet & Tube Fiber Laser Cutting Machine, RJ-3015HT
Combination fiber laser machine for metal sheet and tube cutting
RJ-3015HT fiber laser cutting machine is a sheet metal laser cutting machine configured with tube cutter, able to satisfying metal fabricators that need to cut both metal tubes and plates. This sheet and tube fiber laser cutting machine can be widely used in metal parts processing applications in light fixtures, cookware, decorative materials, machine enclosures, etc.
- Cutting area
- 3000×1500mm
- Laser power
- 2000-6000W (optional)
- Positioning accuracy
- ±0.03mm
- Max. acceleration
- 1.2G
- Repositioning accuracy
- ±0.02mm
- Power supply
- AC 380V, 3-phase, 50/60Hz
- Moving speed
- 140m/min
- Round tube cutting diameter
- 15-220mm
- Square tube cutting size
- 20×20mm-150×150mm
-
-
Heavy Duty Welded Bed
The machine bed is constructed with high-strength carbon structural steel by welding. The welded bed has undergone a 600°C heat treatment, efficiently ensuring high durability of structure and enabling it able to last for 20 years without deformation.
-
-
Fourth Generation of Aviation Aluminum Crossbeam
The crossbeam is made from aviation aluminum alloy that has good dynamic performance. The beam is designed with honeycomb structure to provide better structural strength.
-
-
Auto Focus Laser Cutting Head
The laser cutting head allows for automatically adjusting focus lens to an appropriate position by software, thus achieving automatic cutting and perforating of metals with different thickness.
-
-
Raycus Laser Source
This laser source directly controls all types of fiber laser functions, realizing synchronous control of laser source.
-
-
Independent Control Cabinet
The control cabinet features a design of dustproof and vibration resistance, efficiently prolonging the service life of electrical components.
-
-
IPAD Screen Design
Tempered glass panel design provides high definition effect and smooth operation.
-
Chuck
The chuck permits quick adjusting and precise positioning of metal tubes with different sizes, providing good adaptability. The rear chuck features extended length, enabling the cutting tailing to be further shortened therefore maximizing utilization rate of the material.
-
Fractional Automatic Support
The automatic tube support system allows for rapid loading of metal tubes and reducing tube oscillation, therefore ensuring high precision of cutting.
