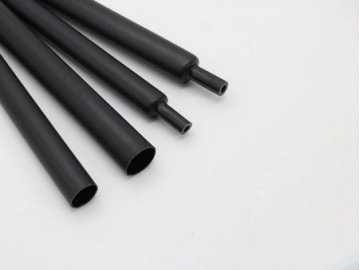

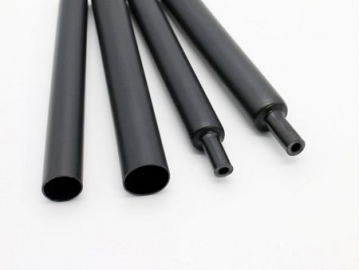

Medium Wall Heat Shrink Tubing, SBRSM-NF
Model: SBRSM-NF
Adhesive-lined heat shrinkable polyolefin tubing
SBRSM-NF medium wall heat shrink tubing is adhesive-lined heat shrinkable tubing is produced using high quality polyolefin and hot melt adhesive through double-layer co-extrusion process. This medium wall heat shrink tubing features an outer layer offering excellent physical and chemical properties.
Features
- 3:1 shrink ratio, not flame-retardant
- Sealing and protection of cable splices and terminations
- Excellent mechanical protection
- Complete moisture sealing
- Strain relief for delicate wire connections
- High resistance to impact and abrasion
- Thermoplastic adhesive liner for complete environmental protection and insulation
- Continuous operating temperature: -45℃～125℃
- Fully shrink temperature: 125℃
- RoHS compliant
| Size (mm) | Expanded | After Recovery | Standard Package (m/pc) | |||
| Internal Diameter (mm) | Internal Diameter (mm) | Jacket Thickness (mm) | Adhesive Thickness (mm) | Total Wall Thickness (mm) | ||
| 6.0/2.0 | 6.0 | 2.0 | 1.40±0.20 | 0.45±0.15 | 1.85±0.30 | 1.22 |
| 8.0/2.0 | 8.0 | 2.0 | 1.40±0.20 | 0.45±0.15 | 1.85±0.30 | 1.22 |
| 10.2/3.0 | 10.2 | 3.0 | 1.40±0.20 | 0.50±0.15 | 1.90±0.30 | 1.22 |
| 12.0/3.0 | 12.0 | 3.0 | 1.40±0.20 | 0.50±0.15 | 1.90±0.30 | 1.22 |
| 16.0/5.0 | 16.0 | 5.0 | 1.50±0.20 | 0.55±0.20 | 2.15±0.35 | 1.22 |
| 19.1/5.6 | 19.1 | 5.6 | 1.80±0.20 | 0.60±0.20 | 2.40±0.40 | 1.22 |
| 22.0/6.0 | 22.0 | 6.0 | 2.00±0.30 | 0.60±0.20 | 2.60±0.40 | 1.22 |
| 25.0/8.0 | 25.0 | 8.0 | 2.00±0.30 | 0.65±0.20 | 2.70±0.40 | 1.22 |
| 28.0/6.0 | 28.0 | 6.0 | 2.40±0.30 | 0.95±0.25 | 3.30±0.45 | 1.22 |
| 33.0/8.0 | 33.0 | 8.0 | 2.50±0.30 | 0.80±0.25 | 3.30±0.45 | 1.22 |
| 38.1/12.0 | 38.1 | 12.0 | 2.40±0.30 | 0.80±0.25 | 3.30±0.45 | 1.22 |
| 43.2/12.7 | 43.2 | 12.7 | 2.40±0.30 | 0.80±0.25 | 3.30±0.45 | 1.22 |
| 55.0/16.0 | 55.0 | 16.0 | 2.40±0.30 | 0.80±0.25 | 3.30±0.45 | 1.22 |
| 65.0/19.0 | 65.0 | 19.0 | 2.50±0.30 | 0.80±0.25 | 3.30±0.45 | 1.22 |
| 75.0/22.0 | 75.0 | 22.0 | 2.90±0.30 | 0.80±0.25 | 3.70±0.50 | 1.22 |
| 85.0/25.0 | 85.0 | 25.0 | 2.90±0.30 | 0.80±0.25 | 3.70±0.50 | 1.22 |
| 95.0/30.0 | 95.0 | 30.0 | 3.00±0.30 | 0.80±0.25 | 3.70±0.50 | 1.22 |
| 115.0/34.0 | 115.0 | 34.0 | 3.00±0.30 | 0.80±0.25 | 3.70±0.50 | 1.22 |
| 140.0/42.0 | 140.0 | 42.0 | 3.00±0.30 | 0.80±0.25 | 3.70±0.50 | 1.22 |
| 160.0/50.0 | 160.0 | 50.0 | 3.10±0.30 | 0.80±0.25 | 3.70±0.50 | 1.22 |
| 180.0/65.0 | 180.0 | 65.0 | 3.10±0.30 | 0.80±0.25 | 3.70±0.50 | 1.22 |
| 200.0/69.0 | 200.0 | 69.0 | 3.10±0.30 | 0.80±0.25 | 3.70±0.50 | 1.22 |
| 230.0/78.0 | 230.0 | 78.0 | 3.10±0.30 | 0.80±0.25 | 3.70±0.50 | 1.22 |
Note: Tubing without adhesive is available upon request
Technical Data| Property | Test Method | Standard Performance | Typical Performance |
| Tensile strength (MPa) | ASTM D2671 | ≥10.4 | 11.5 |
| Elongation (%) | ASTM D2671 | ≥300 | 450 |
| Tensile strength after aging (MPa) | UL224 158℃×168hr | ≥7.3 | 8.5 |
| Elongation after aging (%) | UL224 158℃×168hr | ≥200 | 350 |
| Dielectric strength (kV/mm) | IEC 60243 | ≥15 | 17.5 |
| Volume resistivity (Ω.cm) | IEC 60093 | ≥1×1014 | 2.5×1014 |
| Property | Test Method | Standard Performance |
| Water absorption | ASTM D570 | ＜0.2% |
| Softening point (℃) | ASTM E28 | 95±5 |
| Peel strength (PE) | ASTM D 1000 | 120N/25mm |
| Peel strength (AL) | ASTM D 1000 | 80N/25mm |
