Portable Concrete Vibrator, Series ZRXNB

Request a Quote

About Us: http://vibratorcn.com/1-3-4-portable-concrete-vibrator.html

ZRXNB series portable concrete vibrators are distinguished by its compact structure and light weight. The concrete vibrator is designed with shoulder strap, which means the vibrator can be carried on your shoulder when being used. This concrete vibrating equipment is designed for implementation of self-build houses (DIY) and small construction jobs while ensuring comfort for carrying.

The vibrating poker head of the portable concrete vibrator is a pendulum type, delivering higher efficiency. Utilizing gasoline engine means the vibrator can operate without an external power supply, making it especially suited for construction jobs in the areas without electrical grid.

Optional Models

Model	Vibrator head diameter (mm)	Vibrator head length (mm)	Vibrating frequency (Hz)	Vibrating frequency (vpm)	Amplitude (half value) (mm)	Amplitude (total value) (mm)	Overall dimension L×W×H (mm)	Total weight (kg)
ZRXNB25	25	380	230	13800	0.65	1.3	2785×300 ×400	9.4
ZRXNB35	35	370	230	13800	0.7	1.4	2775×300 ×400	10.3
ZRXNB45	45	429	230	13800	0.8	1.6	2834×300 ×400	12.5

Components of Portable Concrete Vibrator

Vibrator Head

The vibrating poker head is double sealed by O-ring and oil seal to ensure that the vibrator can work for a long time.
The head cap, outer casing and rotary shaft are all made of high quality carbon steel and treated by heat treating process to ensure its service life.

Gasoline Engine

Model: GX35 (other models can be customized)
Fuel: Unleaded Gasoline
Power: 0.95kW
Speed: 6500 rpm (reset)

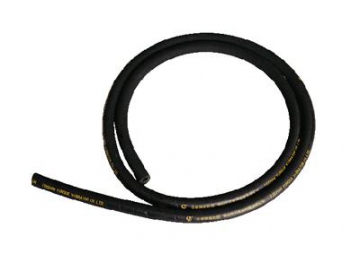

Flexible Hose & Flexible Shaft

Outer diameter of hose: 32mm
Inner diameter of hose: 18mm
Flexible shaft diameter: 12mm
Total length: 2m
