Product Introduction
The PTD01 tube internal coating machine insulates the aluminum tube's inner wall by spraying a protective film layer with stable chemical properties on the inner wall.

The billet tube output by the annealing oven goes through the conveyor chain and falls into the inlet tube slot. It is then sent to the spraying machine rotating cup through the use of a pushing rod. After entering the spray station, the first spray gun enters the tube and blows compressed air into the tube to remove dust and any other impurities inside the tube. After blowing, the embryonic tube follows the turntable to the next station for the first actual spraying process. It is here the inner coating is pushed into the tube using a high air pressure, so that the resulting coating exits the spray gun as a fine mist. The rotating cup is simultaneously driven using a flat belt and rotates at a high speed to ensure a uniform inner wall coating. After the spraying process is finished, the spray gun withdraws, and the rotating cup enters the next station. This station carries out the exact same process, thus ensuring a fully satisfactory coating. The first coating round is generally a side spraying, which focuses on coating the tube body, and the second spraying primarily focuses on the tube head.

Technical parameters
suitable diameter of tube 12.7mm-35mm
suitable length of tube 210mm
maximum production rate 60 tubes/minute
motor power 5.6KW
dimension 3000*1600*2150mm
whole machine weight 2200KG
Minimum inlet pressure 5.5kg/cm2
number of spraying guns Three spraying guns
Main features
  • The machine is PLC controlled, uses a Fuckson dividing structure (from a well-known name)[GF1] and can be adjusted based on frequency needs.
  • The spraying gun is highly accurate with a stable air pressure.
  • It has three spray guns, each of which can be individually controlled, and set according to customer requirements.
  • It is equipped with a high powered vacuum motor in order to remove exhaust gas in a safe, hygienic manner.
  • It has an automatic detection device. When there is no tube, the machine will stop spraying. When the tube is out of order, the machine will also stop operating.

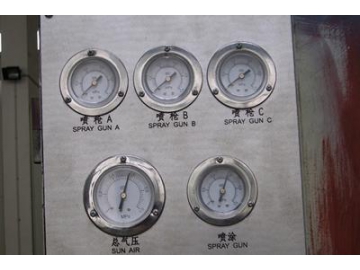

  • Instrument panel

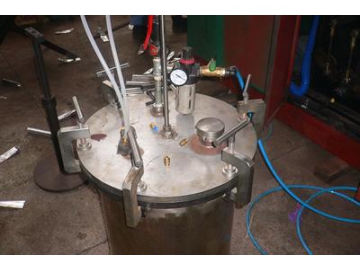

  • Stuff canister

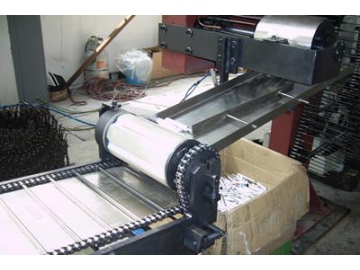

  • Transfer

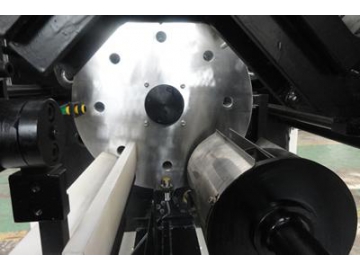

  • Outlet
