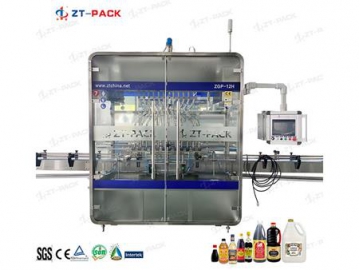

Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine

Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine
Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine
Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine
Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine
Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine
Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine
Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine
Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine
Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine
Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine
Soy Sauce/ Vinegar Low Viscous Liquid Filling Machine
Request a Quote

Suitable for Filling: vinegar / soy sauce flavor water / alcohol / cooking wine / apple cider vinegar, etc.

Filling Range: 100ml-5000ml

Time gravity filling machine is the most economical type of time filling machine for a limited range of applications.This time filling machine is best suited for liquids with very thin viscosities that do not change with ambient temperature or with batch variation. Water, vinegar, soy sauce, oil, alcohol, solvent, mouth wash, cleaner, bleach are good examples and even corrosive liquid and chemicals.

Specifications
Model ZGP-6H ZGP-8H ZGP-10H ZGP-12H ZGP-16H
Dimension 2000×710×2200mm (L×W×H) 2200×710×2200mm (L×W×H) 2300×710×2200mm (L×W×H)
Filling head 6 8 10 12 16
Capacity(500mL) 1500B/H 2000 B/H 2500 B/H 3000 B/H 4000 B/H
Power 1KW 1 KW 1KW 1.5KW 1.5KW
Suitable bottle Diameter:Φ40mm——Φ100mm Height:80mm——280mm
Filling accurate ≤100ml: -1.5ml
100-500ml: -2ml
500-1000ml: -3ml
Neck diameter ≤Φ10mm ( can be designed accordingly)
Filling range 100ml——5000ml (from ZT-PACK)
Filling System Gravity Time Control
Air pressure 0.6Mpa
Power supply 220V, 50Hz / 60Hz
Suitable for Filling
Soy Sauce
Vinager
Cooking Wine
