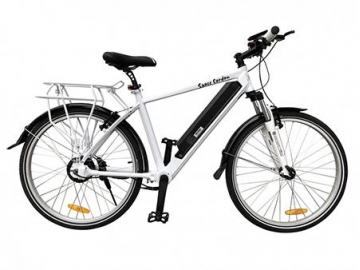

Electric Bicycle
Our electric bicycle features two operating modes: pedal-assist mode and electric mode, which each provide an enjoyable riding experience. Besides common electric bicycles, we also offer racing-type electric bicycles, which features a sleek appearance.
In pedal-assist mode, a speed sensor is equipped to start the motor when riding speed reaches a set threshold. The motor is set at the back wheel of the bicycle and is powered by a battery. When the riding speed surpasses the maximum threshold, the motor will shut down to ensure rider safety.
In electric mode, the electric bicycle is entirely powered by motor with no need for manual cycling. There are 3 adjustable gears. First gear has a maximum speed of 10km/h, the second gear is 15km/h, and third gear is 25km/h. The maximum range per battery charge is 129km in electric mode.
As a bike manufacturer, we offer electric bicycle customization services, including accessories made according to your needs.
- Voltage: 36V
- Current: 12.8A
- The number of battery cells: 40
- Max. speed: 25km/h
- Max. range: 120km
| No. | Item | Description | Unit | QTY | Remark |
| 1 | Frame | TZC-26"370 shift driver type | Set | 1 | Aluminum alloy |
| 2 | Front Fork | TZC-26"370 FORK | PCS | 1 | Steel |
| 3 | Saddle | FU-3680 78MM extend locking screw round reflector | PCS | 1 | Black, leather |
| 4 | Handle Bar | SUS304#,with basket W:640mm,H:85mm￠22.2x630x￠22.2 | PCS | 1 | SUS304 Electrolysis natural color |
| 5 | Stem | Aluminum X-U TYPE TAG , Diameter of tube:25.4MM | Set | 1 | Shinny silver |
| 6 | Rim | DP-24AAS 24*1.75' 14H*36 hole | PCS | 2 | 6061-T6 silver |
| 7 | Battery | 12.8ah | PCS | 1 | Panasonic |

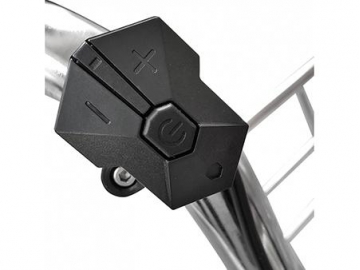

| 8 | Control | BAFANG | PCS | 1 | BAFANG |

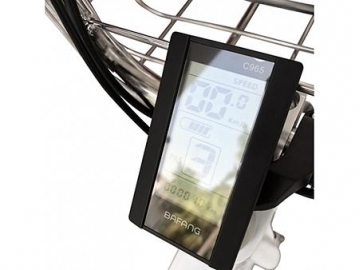

| 9 | Monitor | BAFANG | PCS | 1 | BAFANG |
| 10 | Front Hub | DH-3R30-N 6V3W | PCS | 1 | Shimano |

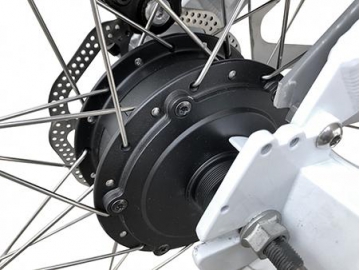

| 11 | Rear Hub | RMG01.250D,36V,250W | Set | 1 | BAFANG |
| 12 | Tire | 1.Kenda K935-002 26*1.75',air tire | Set | 2 | KENDA |
| 13 | Spoke | SUS304#13Gx36H F:215MM R:220MM F/R each with 36 PCS | PCS | 36 | SUS304 |
| 14 | Crankset | YCY-CA6 170MM | Set | 1 | Aluminum |
| 15 | Fender | TZC-ZH-ZHCYUO1-q/h,F/R each with 1 pcs | PCS | 1 | PP |
| 16 | Pedal | Aluminum,CS-909, 9/16"心,1#,with CPSC reflector | PCS | 1 | Aluminum alloy |
| 17 | Kick Stand | TZC-Z032 | PCS | 1 | SUS304 Electrolysis natural color |
| 18 | Rear Lola Brake | Shimano BR-IM41-R | Set | 1 | Shimano |
| 19 | Front Lola Brake | Shimano BR-IM41-F | Set | 1 | Shimano |
| 20 | Brake Lever | VBL-428AL/R | Set | 1 | Aluminum, Natural color |
| 21 | Front Light | Rexeo | Set | 1 | Spanninga |
| 22 | Rear Light | RL15 | Set | 1 | Spanninga |
| 23 | Shift Drive | RC415S7TGR40T7F1H1A1 ratio of gear2.40 | Set | 1 | Aluminum,+Steel space cardan invention patent product since 1996 which be used over 500000pics all the world |
| 24 | Headset | Eight pieces H842SW￠25.4x￠34x￠30 | Set | 1 | NECO |
| 25 | Front light protector | tzc-1123 | Set | 1 | Aluminum |
