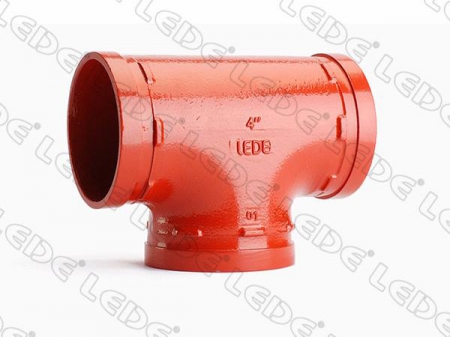

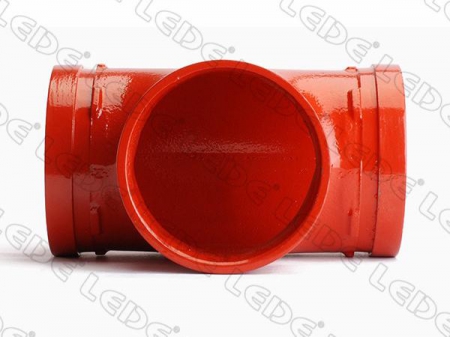

Grooved Pipe Tee
Product Introduction
1. The grooved tee pipe fittings are made from cast ductile iron conforming to ASTM A536 standards.
2. Dimensions of the pipe tee adhere to ANSI/AWWA C606-06 standards.
3. The center to end dimensions of the grooved pipe fitting meet manufacturer standards.
4. Fittings larger than 14" may be fabricated from steel pipe ASTM A53 Grade B or equivalent materials.
5. Coating options: epoxy, paint, dacromet, hot-dip galvanized.
Technical Data
Nominal size mm/in | Pipe O.D mm/in | Dimension | Working Pressure (psi) | |
L(mm) | ||||
Short | Standard | |||
25 | 33.7 | 57 | 300 | |
1 | 1.327 | |||
32 | 42.4 | 70 | ||
11/4 | 1.669 | |||
40 | 48.3 | 70 | ||
11/2 | 1.9 | |||
50 | 60.3 | 70 | 84 | |
2 | 2.375 | |||
65 | 73 | 76 | 95 | |
21/2 | 2.875 | |||
65 | 76.1 | 76 | 95 | |
21 / 2 | 3 | |||
80 | 88.9 | 85 | 108 | |
3 | 3.5 | |||
100 | 108 | 102 | 127 | |
4 | 4.25 | |||
100 | 114.3 | 102 | 127 | |
4 | 4.5 | |||
125 | 133 | 121 | 140 | |
5 | 5.25 | |||
125 | 139.7 | 121 | 140 | |
5 | 5.5 | |||
125 | 141.3 | 121 | 140 | |
5 | 5.563 | |||
150 | 159 | 130 | 165 | |
6 | 6.25 | |||
150 | 165.1 | 130 | 165 | |
6 | 6.5 | |||
150 | 168.3 | 140 | 165 | |
6 | 6.625 | |||
200 | 219.1 | 175 | 197 | |
8 | 8.625 | |||
250 | 273 | 215 | 229 | |
10 | 10.75 | |||
300 | 323.9 | 220 | 254 | |
12 | 12.75 |
LEDE company design and manufacture grooved piping system jointing fittings, is a leading China grooved pipe tee manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of pipe tee fittings for grooved piping system, made in accordance with UL, CE, ISO certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron grooved pipe tee as well as custom firefighting and water supply solutions based on the client needs.
