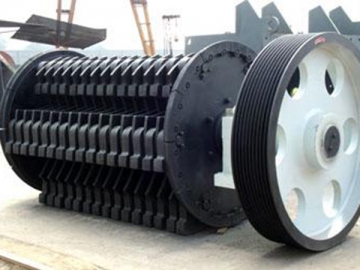

Hammer Mill Hammers

Request a Quote

About Us: http://jhcastingparts.com

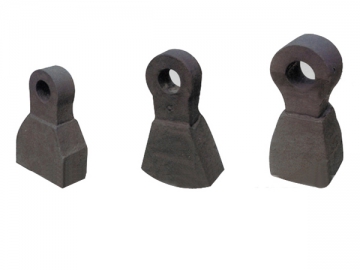

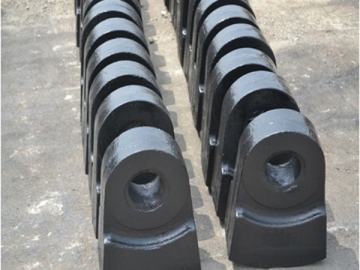

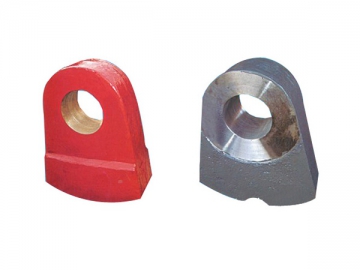

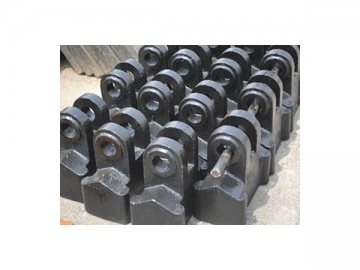

Parts name: Hammer

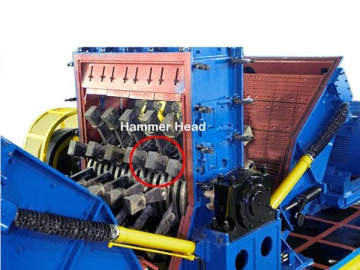

Applicable machine: Hammer mill or hammer crusher
Raw materials: High manganese steel, high chrome steel, bimetal composite materials, alloy steel
Applications: Our hammer mill hammers also referred to as crusher hammers are hammer mill wear parts specially designed for fine crushing and medium fine crushing of materials of medium hardness in cement, chemical, power, metallurgy and other industries. To be specific, the hammermill hammers are ideal for crushing limestone, furnace slag, coke, coal, etc.
Customizable or not: Yes
Parts model: Based on customer's needs
Order quantity: Based on customer's needs

Technical Parameters of Applicable Hammer Mills

Models	Speed (R/min)	Feed particle size (mm)	Capacity (t/h)	Motor power (kw)
PC-300×400	100	50	4-8	11
PC-350×450	100	80	10-20	15
PC-350×500	980	100	20-25	15
PC-400×600	950	150	25-30	18.5
PC-600×800	950	200	30-50	55
PC-800×1000	950	200	34-54	110
PC-1000×1000	1000	200	40-60	132
PC-1200×1000	1000	200	75-150	160
PC-1200×1200	1250	200	80-160	185
PC-1400×1400	1400	250	120-170	280
PC-1600×1600	1600	350	220-290	500
