High Shear Granulator Manufacturer

High Shear Granulator

Request a Quote

About Us: http://pharmacy-machines.com/1-4-1-high-shear-granulator.html

Features

PLC control (HMI optional) is adopted for controlling in manual and automatic mode, allowing process data editing;
Both agitator impeller and chopper adopt variable frequency drive for speed regulation, easy control of granule size;
Rotating shaft chamber is designed with air seal, eliminating the problem of dust adhesion; It has automatic cleaning function;
Conical shaped mixing bowl provides even mixing of materials; By circulating cooling liquid through the jacket at bottom of the mixing bowl, constant temperature is better performed in comparison with air cooling method, thus improving the quality of granules;
Bowl lid is automatically opened and closed;

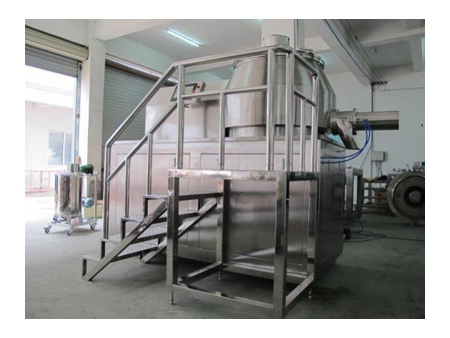

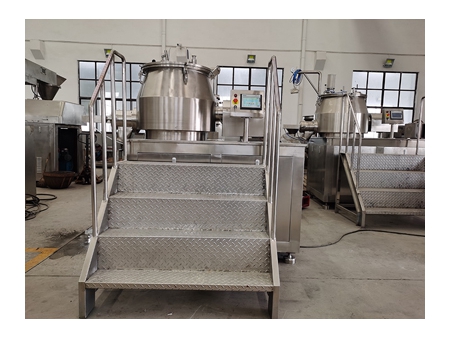

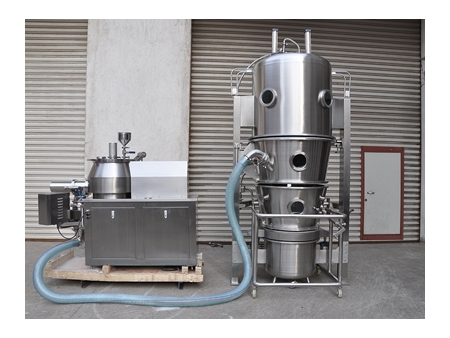

Compatible with drying equipment; Large size wet granulator is configured with ladder for easy operation;
Impeller lifting system facilitates cleaning of impeller and bowl;

Technical Specifications

Model	HLSG-10	HLSG-30	HLSG-50	HLSG-100	HLSG-200	HLSG-300	HLSG-400	HLSG-600	HLSG-800
Bowl capacity	10L	30L	50L	100L	200L	300L	400L	600L	800L
Work capacity	2-8L	6-24L	10-40L	20-80L	40-160L	60-240	100L-300L	150L-440L	200L-600L
Material feeding capacity (specific gravity 0.5g/cm3)	1-4 kg/batch	3-12 kg/batch	8--20 kg/batch	15--40 kg/batch	30--80 kg/batch	30---120 kg/batch	50—150 kg/batch	75—220 kg/batch	100—300 kg/batch
Operation time	Mixing: 2min (Approx.) Granulation: 7-14min/batch (Approx.)	Mixing: 2min (Approx.) Granulation: 7-14min/batch (Approx.)	Mixing: 2min (Approx.) Granulation: 7-14min/batch (Approx.)	Mixing: 2min (Approx.) Granulation: 7-14min/batch (Approx.)	Mixing: 2min (Approx.) Granulation: 7-14min/batch (Approx.)	Mixing: 2min (Approx.) Granulation: 7-14min/batch (Approx.)	Mixing: 4min (Approx.) Granulation: 10-15min/batch (Approx.)	Mixing: 8min (Approx.) Granulation: 15-20min/batch (Approx.)	Mixing: 8min (Approx.) Granulation: 5-15min/batch (Approx.)
Finished granule size	Approx. Φ0.14-Φ1.5mm(12mesh-100 mesh)	Approx. Φ0.14-Φ1.5mm(12mesh-100 mesh)	Approx. Φ0.14-Φ1.5mm(12mesh-100 mesh)	Approx. Φ0.14-Φ1.5mm(12mesh-100 mesh)	Approx. Φ0.14-Φ1.5mm(12mesh-100 mesh)	Approx. Φ0.14-Φ1.5mm(12mesh-100 mesh)	Approx. Φ0.14-Φ1.5mm(12mesh-100 mesh)	Approx. Φ0.14-Φ1.5mm(12mesh-100 mesh)	Approx. 0.10-Φ2.5mm
Impeller motor	2.2KW 6-pole	3KW 6-pole	5.5KW 6-pole	7.5KW 6-pole	15KW 6-pole	18.5KW 6-pole	22KW 6-pole	30KW 6-pole	37KW 6-pole
Impeller rotary speed (variable frequency)	50-500 RPM	25-500 RPM	25-500 RPM	30-250 RPM	30-260 RPM	30-220 RPM	20-200 RPM	20-200 RPM	20-200 RPM
Chopper motor	0.75KW 2-pole	1.1KW 2-pole	1.5KW 2-pole	3KW 2-pole	4KW 2-pole	5.5KW 2-pole	7.5KW 2-pole	11KW 2-pole	11KW 2-pole
Chopper rotary speed (variable frequency)	50-3000 RPM	50-3000 RPM	50-3000 RPM	50-3000 RPM	50-3000 RPM	50-3000 RPM	50-3000 RPM	50-3000 RPM	50-3000 RPM
Compressed air	0.15m3 0.7Mpa (supplied by user)	0.1.5m3 0.7Mpa (supplied by user)	0.3m3 0.7Mpa (supplied by user)	0.3m3 0.7Mpa (supplied by user)	0.3m3 0.7Mpa (supplied by user)	0.5m3 0.7Mpa (supplied by user)	0.5m3 0.7Mpa (supplied by user)	0.5m3 0.7Mpa (supplied by user)	0.6m3 0.7Mpa (supplied by user)
Cooling water connection	Φ8mm	Φ8mm	Φ8mm	Φ8mm	Φ10mm	Φ10mm	Φ10mm	Φ10mm	Φ12mm
Compressed air port	Φ8mm	Φ8mm	Φ8mm	Φ8mm	Φ10mm	Φ10mm	Φ10mm	Φ10mm	Φ12mm
Machine dimension (L×W×H)	1280×530×1320 mm	1500×550×1350 mm	1750×600×1620 mm	1760×600×1660 mm	2180×810×1950mm	2420×1060×2150mm	2420×1060×2150mm	2980×1200×2500mm	3180×1500×2800mm
Weight	350kg	450kg	600kg	800kg	1300kg	1500Kg	1800kg	2200kg	2700kg
