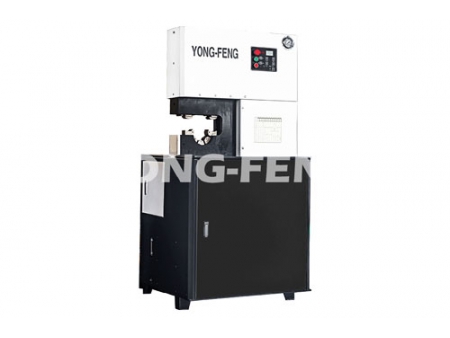

YONG-FENG F76C Side Feed Hose Crimping Machine
Request a Quote
Application

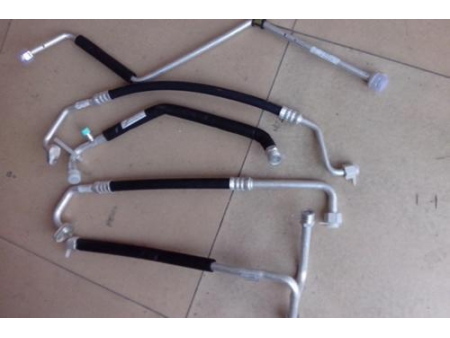

The crimp force of YONG-FENG F76C side feed hose crimping machine is 1200KN, with a crimp range of 4~87mm. YONG-FENG F76C crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, hydraulic hoses, medical hoses and water hoses.
Max. inner diameter
Industrial hoses: 3"
Hoses with 2 braided wires: 2"
Hoses with 4 spiral wires: 1¼"
| Crimp head material | FORGE STEEL |
| Crimp range | 4-87mm |
| Hose size | 1¼", 4SN |
| Passing diameter | 112+100mm |
| Opening diameter | 112mm |
| Opening | +25+100mm |
| System pressure | 31.5Mpa |
| Crimp force | 1200kN |
| Drive | 3kw/4kw |
| Standard voltage | Customized |
| Control | Full automatic |
| Standard dies | Customized |
| Weight | 1190kg |
| L x W x H | 1032*1300*1930mm |

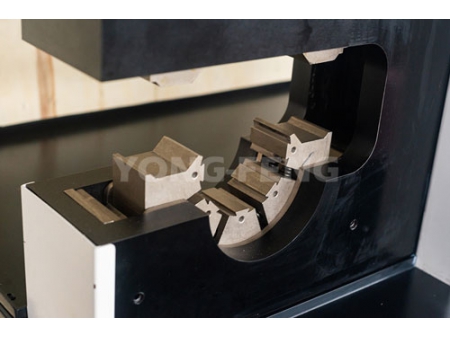

Material
The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The harden layer is 2mm thick. The 40 chromium is high pressure resistant and tear resistant with great impact absorbing and carrying capacity. Therefore, the oil tank and piston rod are more durable.
