Automatic Inline Cap Tightening Machine, FXZ-160A

Automatic Inline Cap Tightening Machine, FXZ-160A
Automatic Inline Cap Tightening Machine, FXZ-160A
Automatic Inline Cap Tightening Machine, FXZ-160A
Automatic Inline Cap Tightening Machine, FXZ-160A
Automatic Inline Cap Tightening Machine, FXZ-160A
Automatic Inline Cap Tightening Machine, FXZ-160A
Automatic Inline Cap Tightening Machine, FXZ-160A
Automatic Inline Cap Tightening Machine, FXZ-160A
Automatic Inline Cap Tightening Machine, FXZ-160A
Automatic Inline Cap Tightening Machine, FXZ-160A
Request a Quote

The FXZ-160A automatic inline cap tightening machine sorts caps and caps bottles by tightening the belts which feed in the bottles. This capping machine with environmental safety cover caps round and flat bottles of different sizes and materials and can easily be adjusted for specifications. The environmental cover meets safety standards for the agrochemical industry and the stainless steel structure of the inline capping machine meets GMP standards. Customized options are available.

Main performance parameters:
  • Current supply: AC220V; 50HZ (or customized)
  • Power: 2.2KW
  • Capacity: ≤8000 bottles/hour
  • Bottle Diameter: Φ40mm-100mm
  • Bottle Height: 80-280mm
  • Cap Size Range: Diameter: Φ12-70mm Height: 10-40mm
  • Machine Weight: 650kg
  • Qualified Rate: >98%
  • Air Pressure: 0.5~0.7 MPA
  • Machine Dimensions: 2000 x 950 x 2100mm(L x W x H)
Features:

1. Components from Schneider ensure reliability.

2. Sensors in the cap hopper detect when the machine is low on caps and will stop operation when they are gone.

3. Handle easily adjusts the height and tightness of the belt.

4. A mirror allows operators to check the state of caps.

5. Capping wheels and tightening belt are long lasting.

Choose this capping machine if:

Caps without a protective lock ring are suitable.

Configuration
No. Item Supplier Brand
1 Other devices Taiwan YDK
2 Power button France Schneider
3 Frequency converter France Schneider
4 Twisting motor China huangyan
5 Cap sorting motor China huangyan
6 Bottle-fixer motor China huangyan
7 Conveyor motor China Ziguang
8 Speed reducer China Jiaoxing

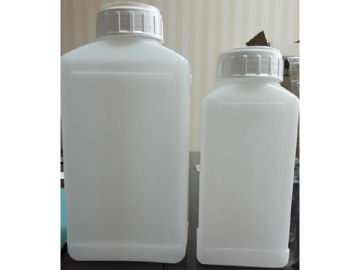

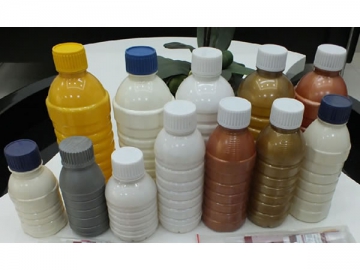

Suitable caps:
