QGZ-65 Metalloraphic Abrasive Cutter, Automatic

Request a Quote

Website: http://metallographictesting.com/1-4-metalloraphic-abrasive-cutter.html

Request a quote

Features

QGZ-65 automatic metalloraphic abrasive cutter adopts electromechanical separation structure to effectively protect electrical safety. It features flexible cutting mode and convenient maintenance.
Machine body is made by thick sheet metal, which is firm and stable.
Intelligent feeding: the speed can be automatically adjusted according to the sample hardness to avoid blockage. The Y axix can be automatically and accurately controlled, and it will return automatically after cutting. This cut-off machine is suitable for cutting materials of various shapes and sizes and the cut surface is bright and flat without burns.
Z axix can be adjusted manually for different sizes of cutting wheels and it can automatically compensate the loss during cutting, effectively improving the utilization of the cutting wheel.

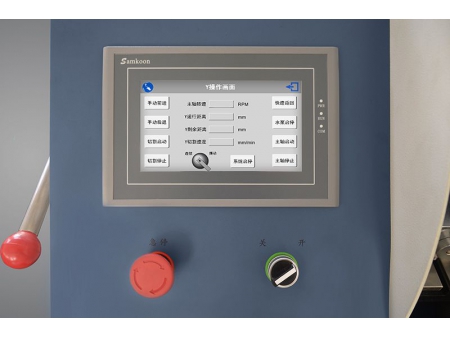

7 inch high definition color touch screen offers intuitive display and easy operation.

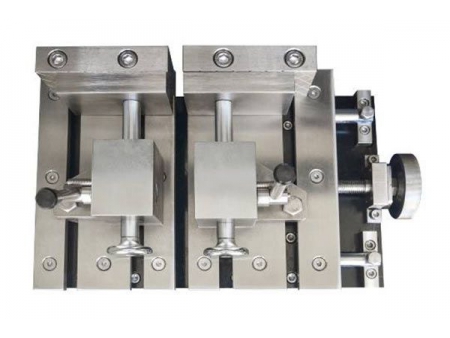

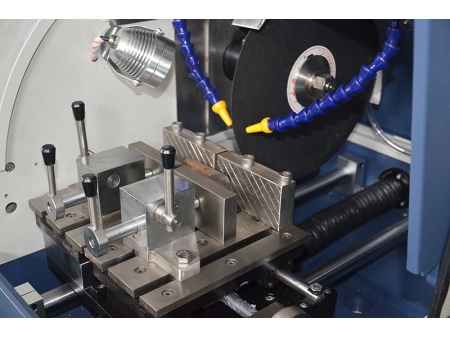

Double-sided quick clamp and T-slotted table come with fast operation, corrosion proof and easy replacement.

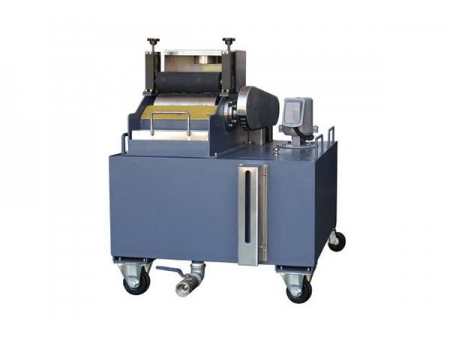

Mobile circulating cooling water tank has three adjustable cooling water channels to prevent the samples from burn damge. The water guns are easy to be cleaned independently.
The machine automatically stops when opening the cover. This safty protection enables the working area being enclosed. The transparent cover and LED lamp are for ease of observation.

Technical Data

Cutting mode: continuous cutting, pulse cutting

Feeding speed: manual/automatic, 1~240mm/min (max. speed is at zero load)

Y axis travel: 235mm

Z axis travel: 35mm

Spindle speed: 500~3000r/min

Cutting table: 350×220mm with 12mm T slot

Clamp tool: quick clamp, jaw height 60mm

Display and control: 7 inch touch screen

Dimensions: 800×760×1370mm

Net weight: 280kg

Water tank capacity: 60L

Pump flow: 25L/min

Water tank size: 565×360×600mm

Water tank weight: 27kg
