Potty Training Pants Production Line
Model No.
PX-LLK-600-SF Full Servo Pull-ups Baby Diaper Production Line
PX-LLK-550-BSF Semi Servo Pull-ups Baby Diaper Production Line

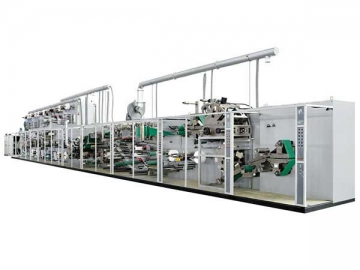

Product Name: Full Servo Pull-ups Potty Training Pants Production Line
1.
Design speed: 600pcs/min
Regular speed: 400pcs/min
2.
Design speed: 550pcs/min
Regular speed: 350pcs/min
Other optional functions can be chosen upon customers’ requirements
a. Full-servo control stacker (Auto Bagging Machine)
b. Automatic bagging sealing machine
Main Technical Parameters
1. Completed products

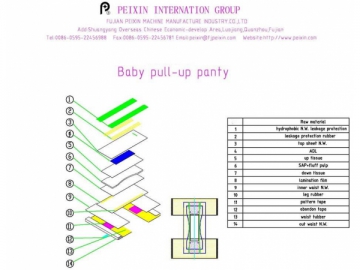

XL, L, M, S-size pull-ups baby diaper
2. Design speed: 600pcs/min
3. Regular production speed (M-size): 400pcs/min
4. Overall dimensions (L×W×H):
30mx7mx3.4m(With stacker)
5. Total power (excluding glue applicator and air compressor): 300KW(380V,50HZ)
6. Weight: About 100 Ton
7. Can be fitted with full servo control stacker(Auto Bagging machine), production speed 50 bags/Min
