Shallow Well Jet Pump, Solar Powered Pump, SJET

Shallow Well Jet Pump, Solar Powered Pump, SJET
Shallow Well Jet Pump, Solar Powered Pump, SJET
Shallow Well Jet Pump, Solar Powered Pump, SJET
Shallow Well Jet Pump, Solar Powered Pump, SJET
Shallow Well Jet Pump, Solar Powered Pump, SJET
Request a Quote
  • Max. flow range: 2.5 m³/h ~ 3 m³/h
  • Max. head range: 38m~55m
  • Pump voltage: DC48V, DC72V
  • Inlet/outlet:1"/1"

Features

  • Solar powered shallow well jet pumps can be sued for home water supply, garden irrigation, water tank storage, water pipe pressure boost, etc.
  • The shallow well jet pump can work 24/7.
  • The solar jet pump features compact design, long lifespan, high effectiveness and great reliability.
  • Voltage: DC 48V, DC 72V.
  • Power: 370W-750W.
  • Max. flow: 3000L/H.
  • Max. head: 55m.

Product Configuration

  • Pump body: stainless steel.
  • Impeller: PPO plastic.
  • Motor casing: die-casting aluminum.
  • Bearing: NSK stainless steel bearing.
  • Motor: permanent magnet synchronous brushless motor.
  • Controller: MPPT function, reverse polarity alarm protection, wide voltage input range.

Technical Data

  • Model: SJET2.5/38-D48/370
  • Max. Flow (m³/h): 2.5
  • Max. Head (m): 38
  • Pump
    Voltage (V): 48
    Power (W): 370
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 500-600
  • Inlet/outlet (inch): 1/1

  • Model: SJET2.7/48-D48/550
  • Max. Flow (m³/h): 2.7
  • Max. Head (m): 48
  • Pump
    Voltage (V): 48 Power (W): 550
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 720-900
  • Inlet/outlet (inch): 1/1

  • Model: SJET2.7/48-D72/550
  • Max. Flow (m³/h): 2.7
  • Max. Head (m): 48
  • Pump
    Voltage (V): 72 Power (W): 550
  • Solar Panel
    Open Circuit Voltage (V): 50-150
    Recommended Power (W): 7200-900
  • Inlet/outlet (inch): 1/1

  • Model: SJET3.0/55-D48/750
  • Max. Flow (m³/h): 3
  • Max. Head (m): 55
  • Pump
    Voltage (V): 48
    Power (W): 750
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 1000-1250
  • Inlet/outlet (inch): 1/1

  • Model: SJET3.0/55-D72/750
  • Max. Flow (m³/h): 3
  • Max. Head (m): 55
  • Pump
    Voltage (V): 72
    Power (W): 750
  • Solar Panel
    Open Circuit Voltage (V): 50-150
    Recommended Power (W): 1000-1250
  • Inlet/outlet (inch): 1/1

Applications

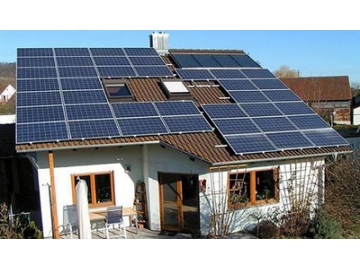

Domestic water needs

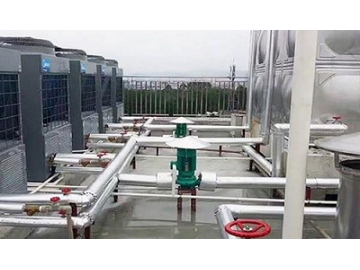

Air conditioner water cooling system

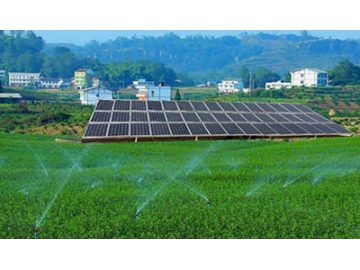

Agricultural irrigation
Drinking water supply
