Request a Quote

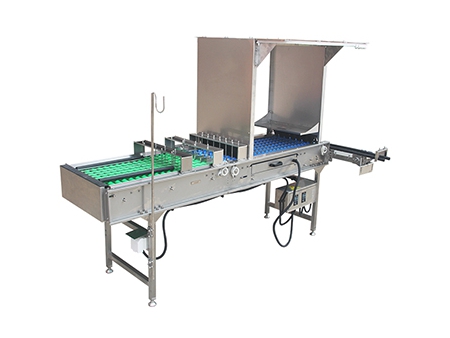

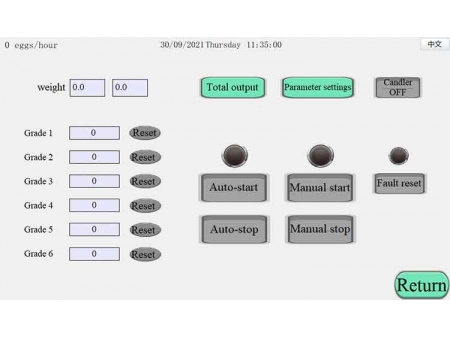

The ZENYER 104B egg grader is made of high-quality stainless steel for great durability. This egg grading machine is featured with digital touchscreen and PLC control system. It sorts eggs into 6 grades. Eggs are weighed by electronic scale with accuracy within ±1g and capacity of 10000 eggs/hour.

You could also attach a to form an egg processing line with same capacity of 10000 eggs/hour to perform egg cleaning as well.

Specifications
Name Egg grader
Product Code 104B
Model ZYF-DS1-C
Material Stainless steel
Capacity 10000 eggs/hour
Accuracy ±1g
Grade 6
Feeding lines 6
Power 1.5KW
Voltage 220V-240V, single phase, 50HZ OR 380V-415V, three phases, 50HZ
Dimension (L*W*H) 5.94*2.4*2M
Net weight 550KG
Gross weight 750KG
Function Vacuum egg lifter & Accumulator (includes candling), printing(option), grading & counting, manual collection table
Operation Flow
  • Vacuum egg lifter & accumulator (includes candling)
  • Egg printing (optional)
  • Grading (electronic sensor weighing) & counting
  • Manual collecting

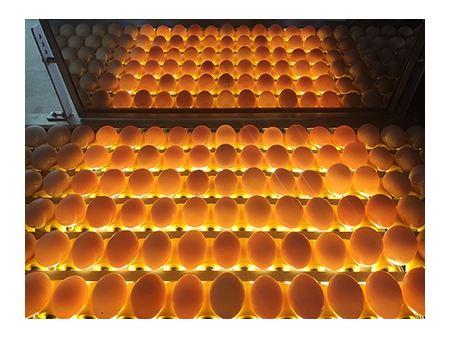

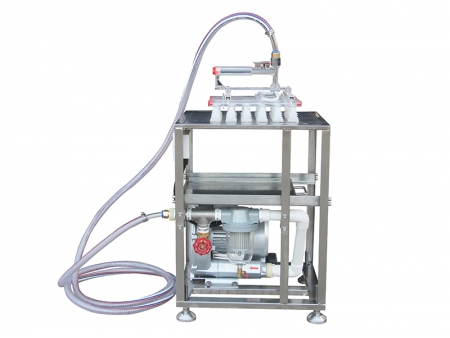

    Vacuum egg lifter & accumulator (includes candling)

    Eggs are vacuum lifted and loaded onto 6-row of the by using the . This egg accumulator features candling to check leaking, dirty or cracked eggs. Then direct 6 lanes of eggs into 1 lane and transport them to the grading system.
    It is also equipped with a stainless-steel candling cover and a mirror for better candling inspection.

    Egg printing (optional)

    ZENYER (single print head) is an optional attachment to print company name and logo, date and Julian date, etc. on eggs.

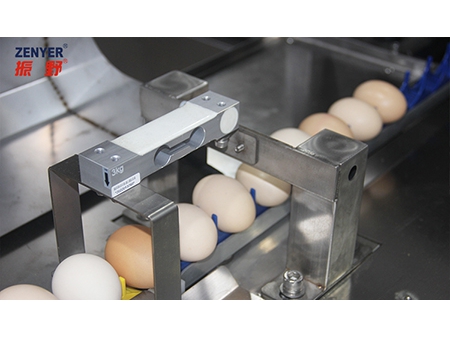

    Grading (electronic sensor weighing) & counting

    Eggs are weighed electronically and graded into 6 grades.
    It has a counting function as well, you can check how many eggs of each grade and total output per shift have been processed.

    Manual collecting
    Manual collection table

    Graded eggs will be dropped onto the sponge rollers, the rollers will transport the eggs to the corresponding collection table, you can collect the eggs from the table and pack them into egg cartons/trays manually.
