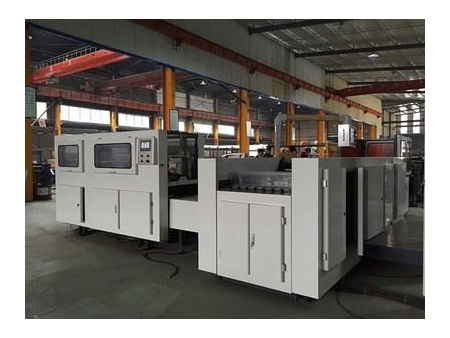

DTCP-A4-5 Paper Sheet Cutting & Wrapping Machine
Request a Quote
The A4 copy paper cutting and packing machine DTCP-A4 effectively shortens the cutting and packaging time, which is conducive to the high productivity of the paper cutting machine. The production process includes paper unwinding, paper cutting, counting, paper conveying, paper unloading, and packaging. The high automation reduces the labor intensity greatly.
Features
The DTCP-A4-5 paper sheeting and wrapping machine is a highly automated piece of equipment utilized for paper reel unwinding, sheeting, counting, conveying and wrapping. This wrapper is a comprehensive unit that greatly minimizes labor in your workshop and speeds up the production process as a result.
Specification
Model | DTCP-A4-5 |
Sheeting unit | |
Shaftless unwinding stands | 1 |
Max.paper reel width | 846mm |
Paper reel diameter | 400-1200mm |
Paper thickness | 60-100 gsm |
Sheeting length | 297mm |
Max.ream height | 65mm |
Paper cutting precision | ±0.2mm |
Overall dimension | 6800*6600*1800mm |
Wrapping unit | |
Production efficiency | 5-6 reams/min |
Ream size (500pcs A4) | 210*297*50mm |
Wrapping paper size | 550-560*386mm |
Overall dimension | 3400*3300*1600mm |
